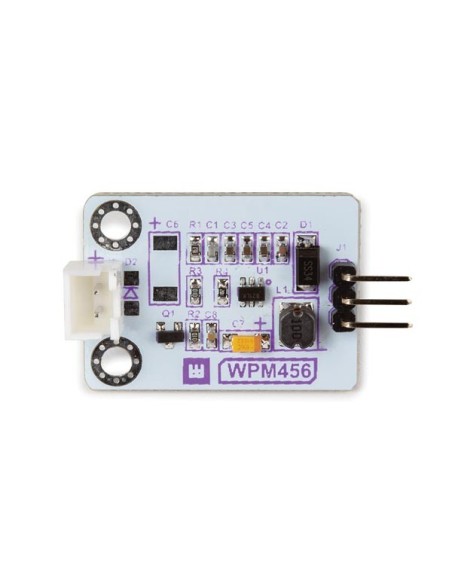

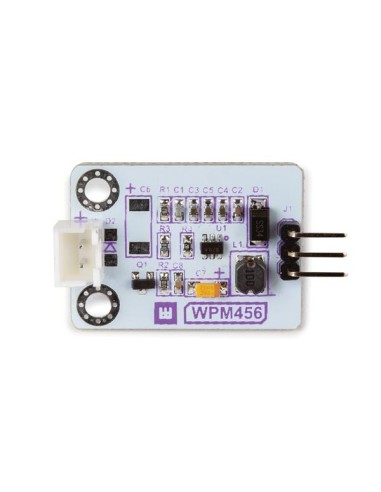

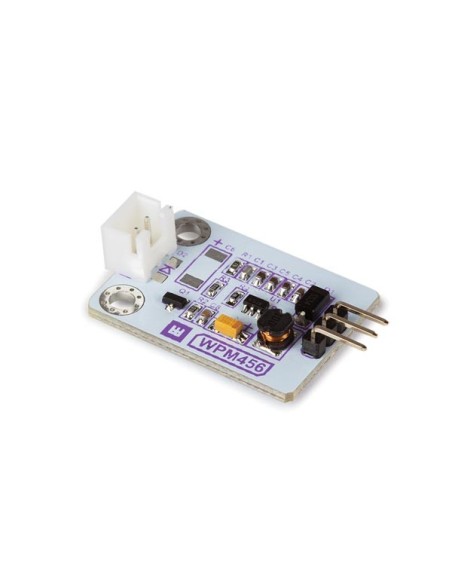

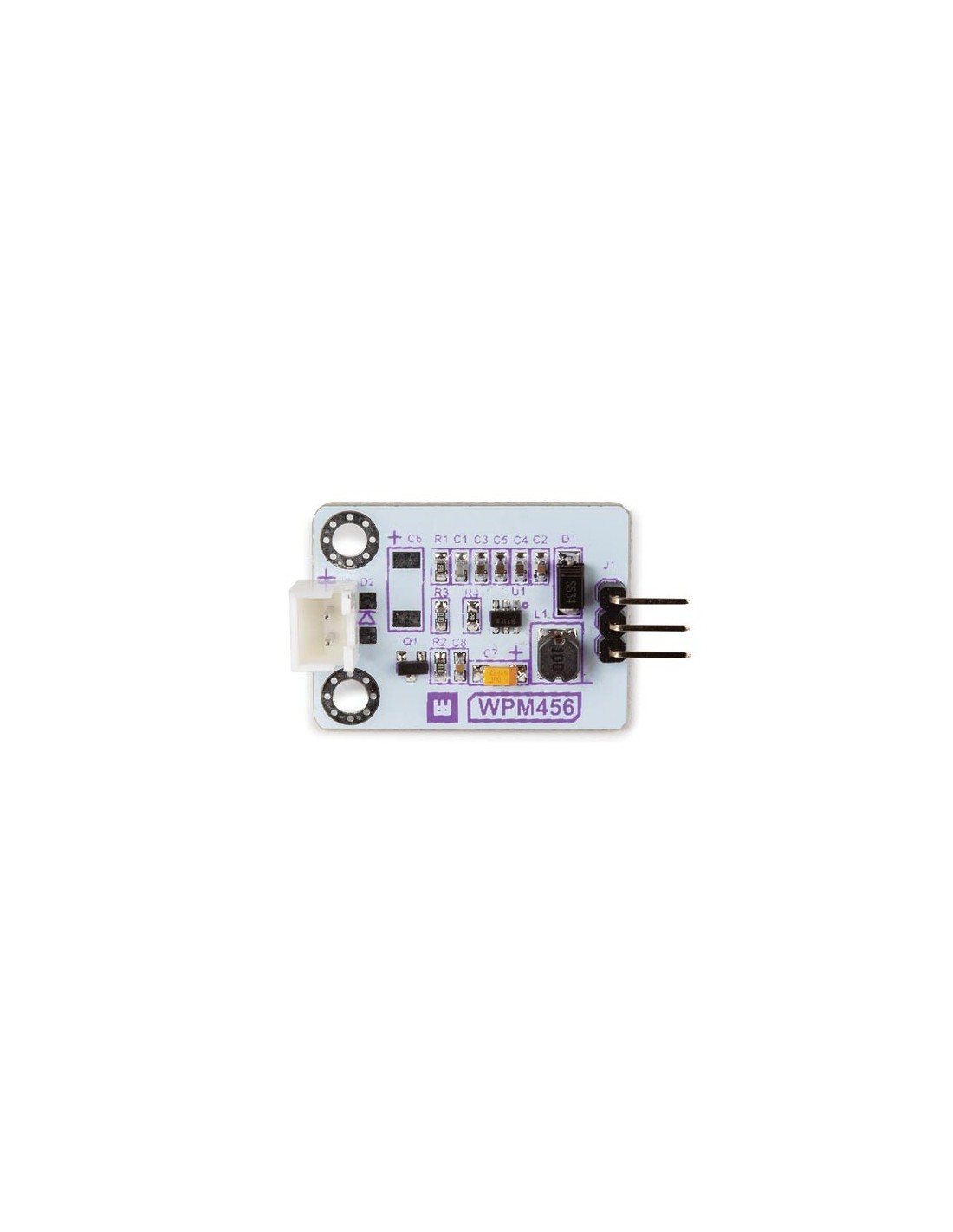

DIGITAL LED STRIP DRIVER MODULE

This digital LED strip driver module is designed to make it easy to drive and switch 12 V LED strips with 5 V devices such as Arduino® compatible boards. The module features a step-up boost converter which is designed to convert a 5 V input voltage to 12 V, in order to drive the LED strip. The signal pin on the module can be used to switch the converter on or off when applying a HIGH or LOW input signal respectively. Note that the module is not designed to work with PWM signals, the input signal has to be either a steady 5 V or GND.

Specification(s):

• built-in buck boost converter to drive 12 V LED strips from 5 V supply

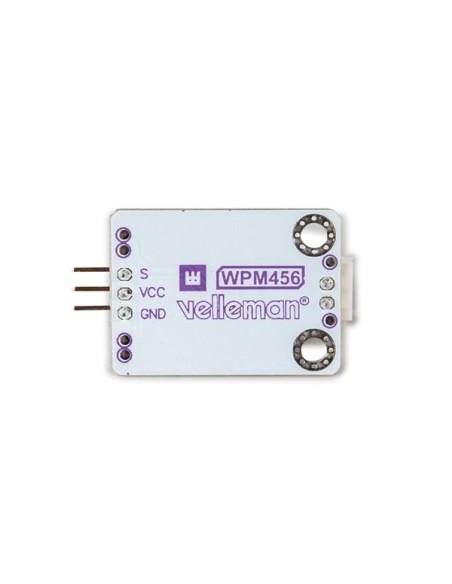

• enable signal pin to easily switch LED strip on and off

Feature(s):

• supply voltage: 5 V DC
• output voltage: 12 V DC
• max. input current: 1 A
• max. output current: 200 mA

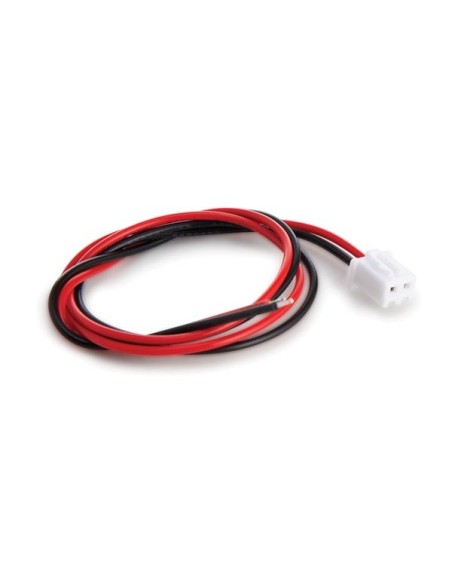

• LED strip connector: 2-pin JST XH
• dimensions (W x L x H): 37 x 22 x 10,2

• EAN: 5410329731991
