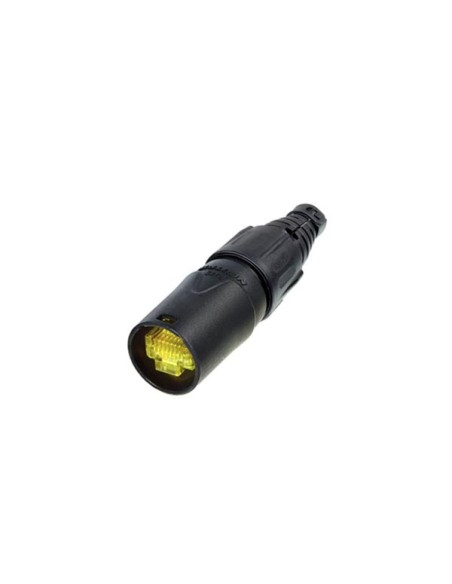

NEUTRIK - ETHERCON - BLACK -  CABLE HOUSING WITH CHUCK AND BUSTING
NEUTRIK - ETHERCON - BLACK -  CABLE HOUSING...

NEUTRIK - ETHERCON - BLACK - CABLE HOUSING WITH CHUCK AND BUSTING

NE8MX-B
Available
€5.95
Tax included
NEUTRIK - ETHERCON - BLACK - CABLE HOUSING WITH CHUCK AND BUSTING


RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of black chromium shell, bushing and boot. Packed with two cable protection elements for cable diameter up to 8 mm. Cable connector carrier does not include a RJ45 plug. The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution. ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Specification(s):
  • the RJ45 system for harsh and demanding environment
  • rugged die cast shell and unique chuck type strain relief
  • o-ring gasket to achieve IP54 water protection in combination with SE8FD sealing kit
  • cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
  • protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors
  • accessories include colour coded boots in 9 standard colours
Feature(s):
  • mechanical:
  • cable outside diameter: max. 8 mm 0.315'
  • insertion force: = 20 N
  • withdrawal force: = 20 N
  • lifetime: > 1000 mating cycles
  • material:
  • boot: polyamide (PA 6)
  • shell: zinc diecast (ZnAl4Cu1)
  • shell plating: black chromium
  • strain relief: polyacetal (POM)
  • environmental:
  • temperature range: -30 °C to +80 °C


  • EAN: 5410329711726
