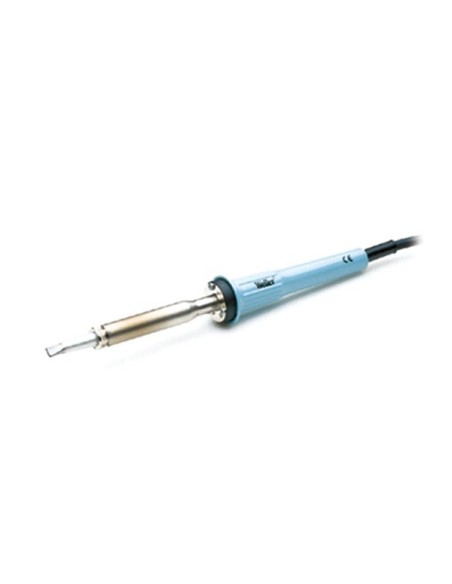

WELLER - W 101 SOLDERING IRON 100 W 230 V

Weller W 101 Magnastat soldering iron, 100 W / 230 V, temperature 370 °C The Weller Magnastat system operates through a ferro-magnetic sensing device which changes its characteristics when specific temperatures are reached. This causes it to either attract or repel a permanent magnet which operates a power supply switch. In this way power to the heating element can be quickly switched on or off to either provide extra power for soldering operations or reduce power when idling. Various pre-selected tip temperatures are available to permit different types of soldering to be undertaken. Working temperature selection is achieved by simply changing the "temperature sensing" soldering tip. These are available in temperature ratings of 260 °C, 310 °C, 370 °C, 425 °C and 480 °C.

Specification(s):

• for CT soldering tips
• complete with soldering tip CT6 E7 and safety rest
• soldering iron: Magnastat controlled
• line voltage soldering iron 100 W

Feature(s):

• Physical properties
• Tip shape: Chisel
• Tip material: Copper, Iron
• Tip depth: 2.9 mm
• Tip width: 6.5 mm
• Electrical data
• Power rating soldering iron: 100 W
• IEC protection class: Class I
• Technical data
• ESD safe: Yes
• Fast heating up: No
• Magnastat-controlled soldering iron: Yes
• Tip range: CT6
• Set-up options
• Temperature range soldering iron: 370 °C
• Operational properties
• Lead-free soldering: Yes
• Power supply
• Input frequency rating: 50 Hz
• Input voltage rating VAC: 230 V
• Included
• LED light: No
• Ceramic heating element: No
• Stand: No
• Product basic info
• Colour: Blue
• Additional colour: Black
• Depth: 218 mm
• Weight: 430 g
• Diameter: 33.5 mm
• Material: PVC (polyvinyl chloride)
• Additional material: Metal

• EAN: 4003019400102
