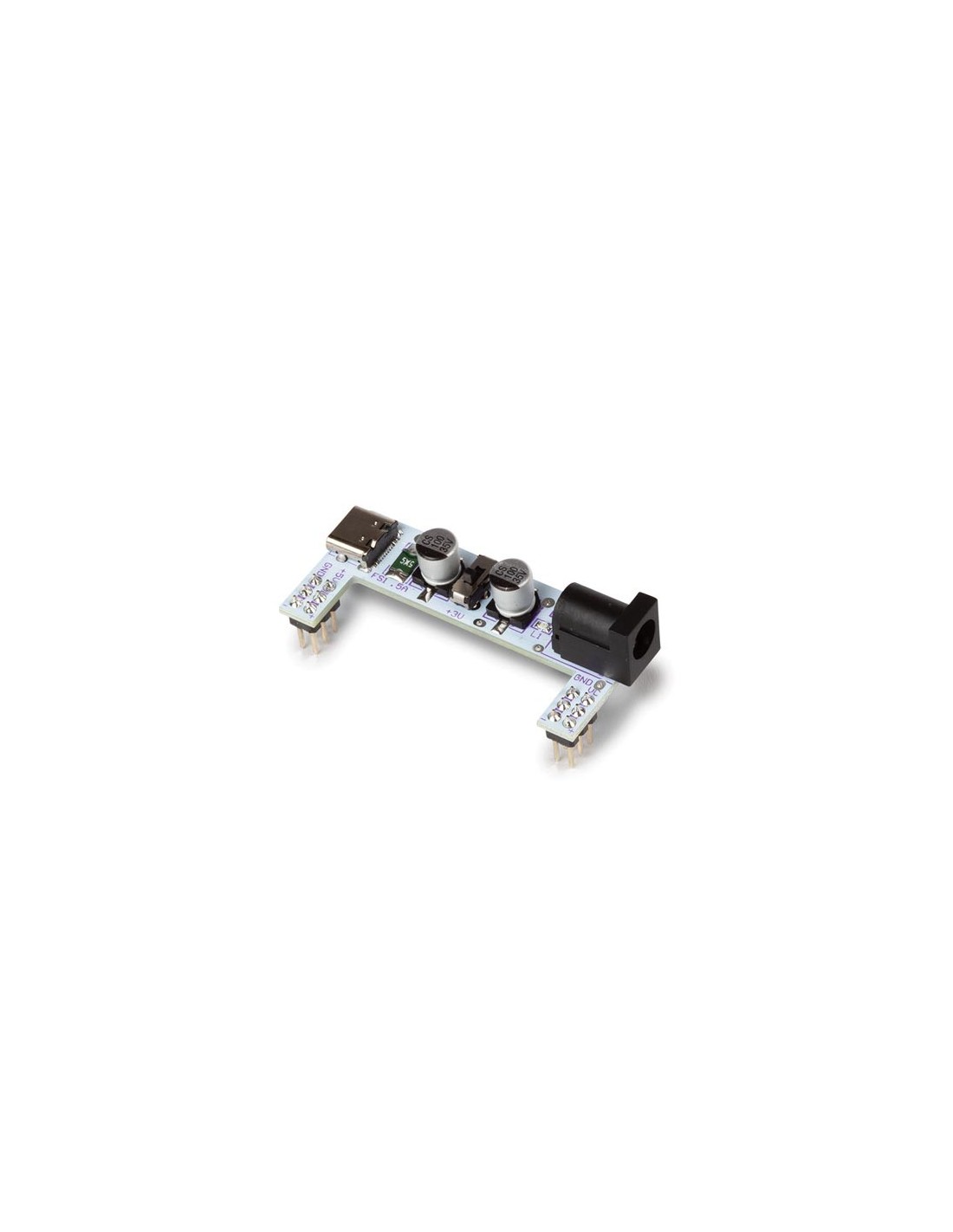

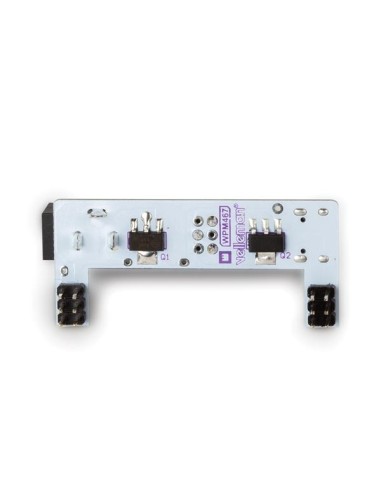

BREADBOARD 3.3V/5V POWER SUPPLY MODULE
WPM467
Available
€5.95
Tax included
BREADBOARD 3.3V/5V POWER SUPPLY MODULE
The Whadda breadboard 3.3V/5V power supply module is the perfect power supply companion for your standard MB-102 compatible 830 point breadboard. Simply plug the module into a compatible breadboard, provide the module with power (either using a USB-C cable or through the standard DC barrel plug) and your breadboard power rails are supplied with a selectable 3.3/5 V on the top side, and a constant 5 V on the bottom side.
Specification(s):
Specification(s):
- perfect power supply companion for your standard MB-102 compatible 830 point breadboard
- USB-C and DC barrel jack power inputs
- 5 V and selectable 3,3 V/5 V output supplies
- supply voltage: 7 - 12 V DC (using DC jack), 5 V DC (using USB-C connector)
- output voltage: 3,3 or 5 V DC (top supply rail), 5 V DC (bottom supply rail), 5 V DC (bottom supply rail)
- maximum output current: 500 mA
- USB connector type: USB-C
- compatible breadboard type: MB-102
- weight: 7 g
- dimensions (W x L x H): 54,5 x 24,0 x 21,0 mm
- EAN: 5410329732158
