4 CHANNEL ADS1115 16 BIT ADC I²C MODULE
4 CHANNEL ADS1115 16 BIT ADC I²C MODULE
4 CHANNEL ADS1115 16 BIT ADC I²C MODULE
4 CHANNEL ADS1115 16 BIT ADC I²C MODULE
4 CHANNEL ADS1115 16 BIT ADC I²C MODULE
4 CHANNEL ADS1115 16 BIT ADC I²C MODULE

4 CHANNEL ADS1115 16 BIT ADC I²C MODULE

WPI453
Available
€14.91
Tax included

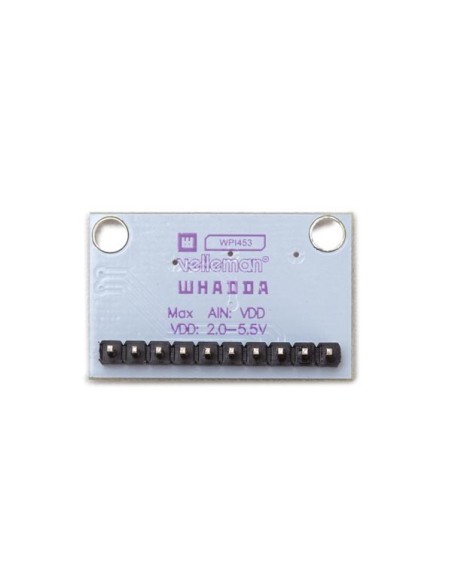

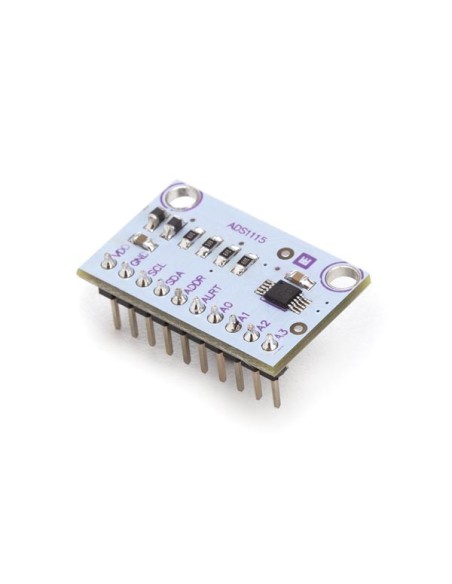

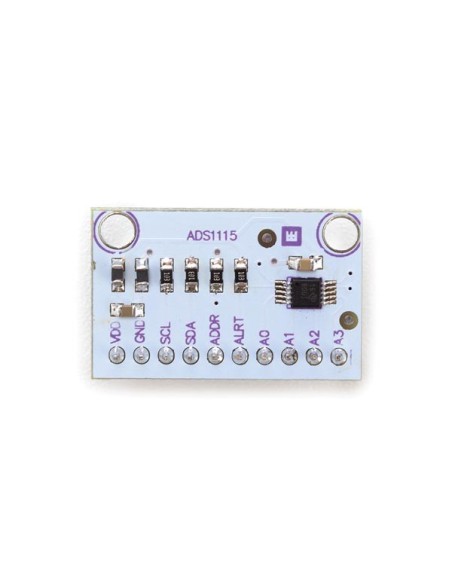

4 CHANNEL ADS1115 16 BIT ADC I²C MODULE


The 4 channel ADS1115 16 BIT ADC I²C module is a great general purpose 16-bit converter. The chip can be configured as 4 single-ended input channels, or two differential channels. It contains 4 precision, low-power, 16-bit, I2C-compatible, analog-to-digital converters (ADCs). It also has a low-drift voltage reference and an oscillator as well as a programmable gain amplifier (PGA) to help boost smaller single/differential signals to the full range and a digital comparator.

Specification(s):
  • low-drift reference voltage
  • internal oscillator
  • internal programmable gain amplifier
  • 4 single-ended channels or 2 differential channels
  • programmable comparator
  • low current consumption with auto shut-down mode
Feature(s):
  • operating voltage: 2 to 5.5 VDC
  • operating current: 150 uA in continuous mode
  • precision: 16 bits
  • programmable data rate: 8 to 860 samples per second
  • interface: I²C with 4 pin selectable addresses (0x48-0x4B)


  • EAN: 5410329725563
