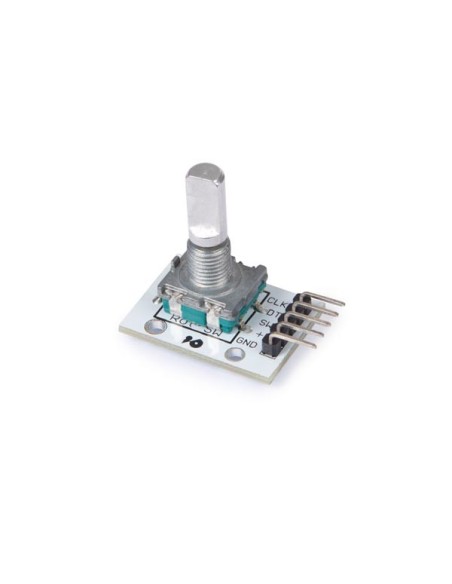

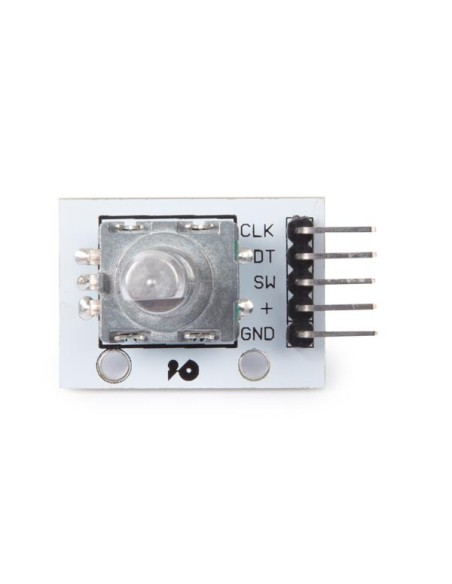

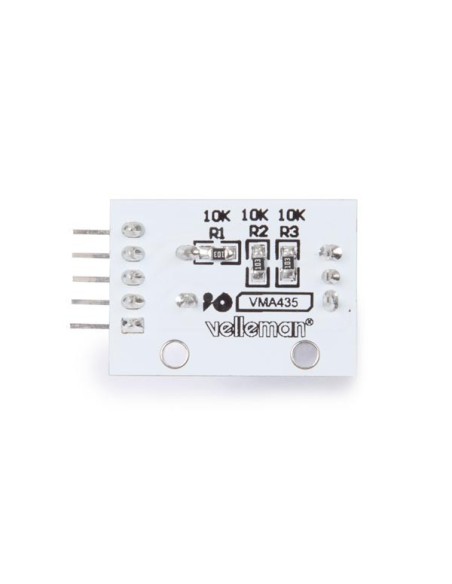

A rotary encoder is an input device that indicates the rotating direction and how much the knob has been rotated. A rotary encoder is useful for for stepper and servo motor control.
Specification(s):
Specification(s):
- flat top
- push-button capability
- unlimited rotations
- pins are right-angle to the knob, but you can connect them to a breadboard using male-female jumper wires
- standard pin spacing: 2.54 mm (0.1")
- working voltage: 0-5 V
- type: incremental encoder
- material: PCB + brass
- cycles per revolution (CPR): 20
- dimensions: 26 x 19 mm
- weight: 10 g
- EAN: 5410329725310
