CAMERA MODULE WITH 2 IR LIGHTS FOR RASPBERRY PI®
WPI408
Available
€34.91
Tax included
CAMERA MODULE WITH 2 IR LIGHTS FOR RASPBERRY PI®

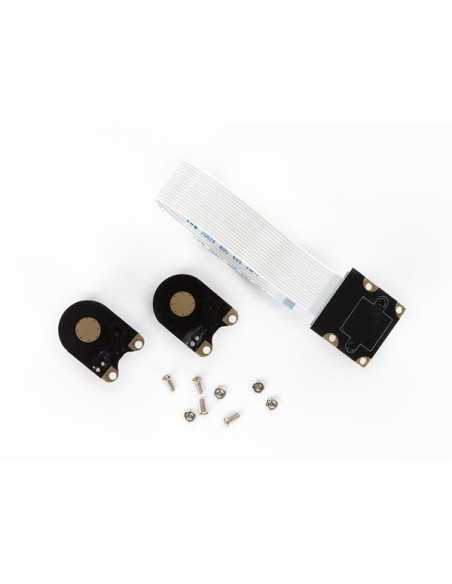

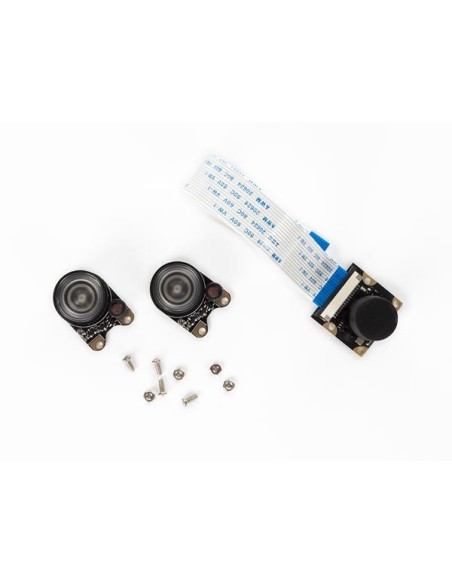

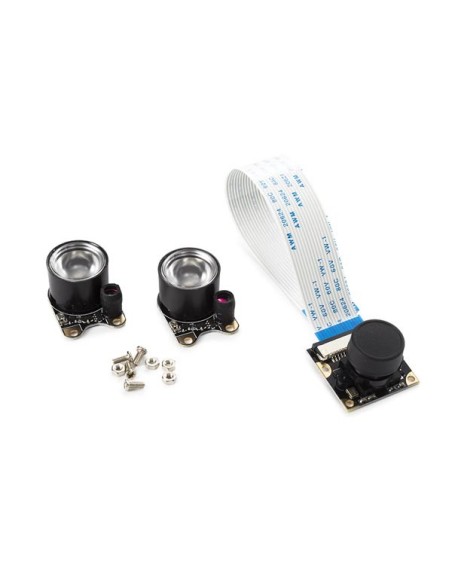

If you want to add a camera to your Raspberry Pi board, but also want night vision to see in the dark, then this module is your solution! The 2 IR lights boards with build-in light sensor can be connected to the central camera module by using the supplied screws. The IR light will turn on when the build-in sensors will detect limited light in the area. Plug-and-play, a tiny size and 5 megapixels to stream in 1080p!
Specification(s):
Specification(s):
- Embedded removable IR-CUT filter, eliminating color distortion in the daylight
- Comes with infrared LED, supports night vision
- 4 screw holes to fix the IR lights
- Compatible with all Raspberry Pi Boards
- sensor: OmniVision OV5647
- still resolution: 5 megapixels
- video modes: 1080p @ 30fps - 720p @ 60 fps - 640x480 @ 60/90 fps
- sensor resolution: 2592 x 1944 pixels
- sensor image area: 3.76 x 2.74 mm
- full frame SLR lens equivalent: 35 mm
- focal length (adjustable): 3.6 mm
- field of view (FOV): 130 degrees
- aperture (F): 1.8 mm
- S/N ratio: 36 dB
- dynamic range: 67 dB @ 8x gain
- dimensions: 22 x 25 x 15 mm (0.87 x 0.99 x 0.6")
- weight: 3 g
- IR lights (2): 3.3 V, fits on camera with 2 x 2 screws (included)
- EAN: 5410329725457
