PSWRX075
Available
€1.10
Tax included

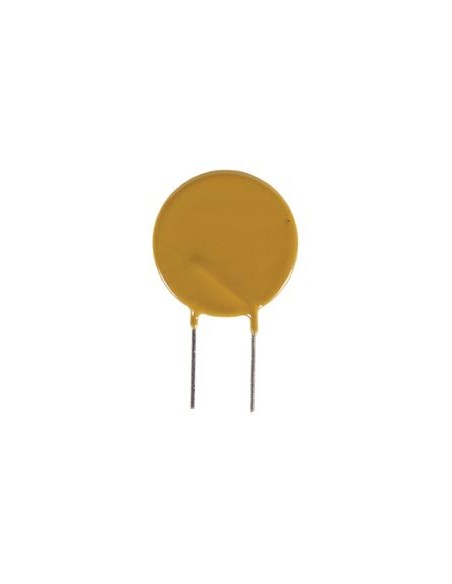

RESETTABLE FUSE 0.75-1.5A / 60Vdc

The minimum purchase order quantity for the product is 5.


The PTC resistor resets automatically and protects your circuit permanently.

Specification(s):
  • low hold current
  • solid state
  • radial leads
Feature(s):
  • hold current Ih (A): 0.75
  • trip current It (A): 1.50

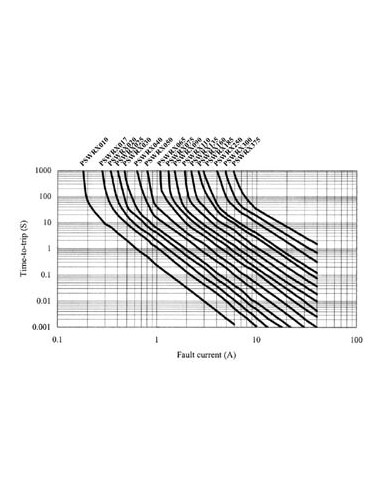

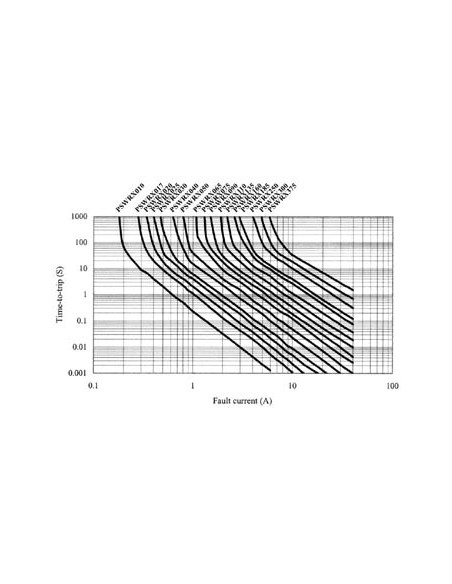

  • max. time to trip (at 5 x Ih): 6.3
  • max. current Imax (A): 40
  • rated voltage Vmax (Vdc): 60
  • typ. power Pd (W): 0.92
  • resistance tolerance:
  • Rmin (ohm): 0.25
  • Rmax. (1 hour after tripping) (ohm): 0.60

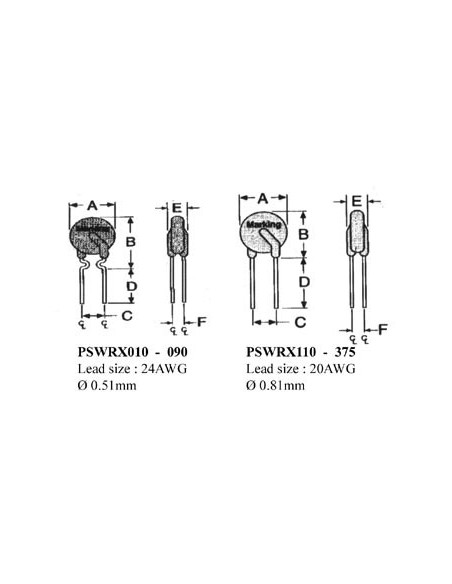

  • dimensions:
  • A (max): 10.4
  • B (max): 15.2
  • C (typ): 5.1
  • D (min): 7.6
  • E (max): 3.1
  • F (typ): 1.1
  • operating current: 100mA ~ 3.75mA
  • maximum current: 40A
  • maximum voltage: 60V

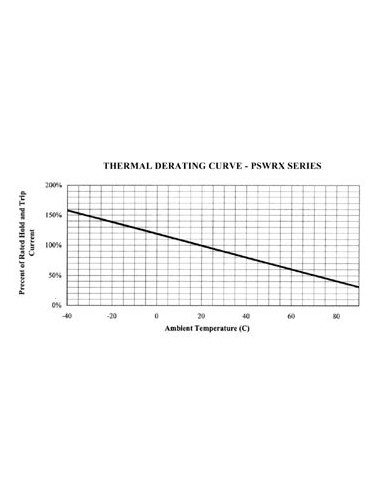

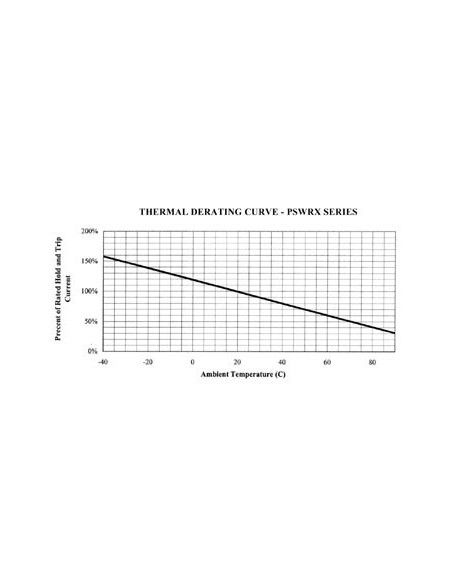

  • temperature range: -40°C to +85°C
  • materials:
  • leads: tin-plated copper
  • insulation: flame-retardant epoxy, meets requirement UL-94V-O


  • EAN: 5410329214180
