PSWRU090
Available
€1.10
Tax included

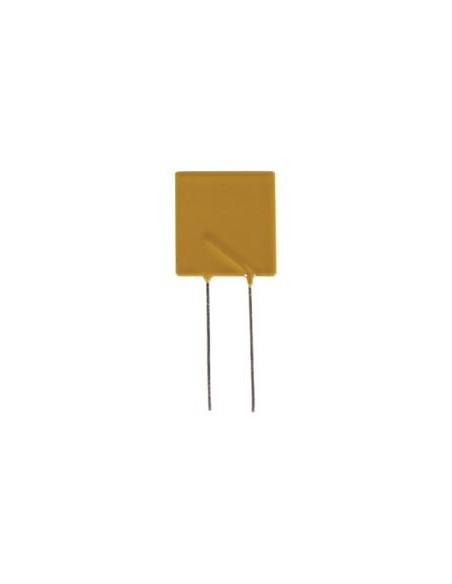

RESETTABLE FUSE 0.9-1.8A / 30Vdc

The minimum purchase order quantity for the product is 5.


The PTC resistor resets automatically and protects your circuit permanently.

Specification(s):
  • low resistance
  • high hold current
  • solid state
  • radial leads
Feature(s):
  • hold current Ih (A): 0.90
  • trip current It (A): 1.80

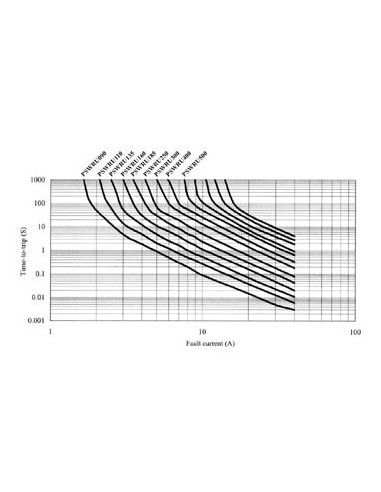

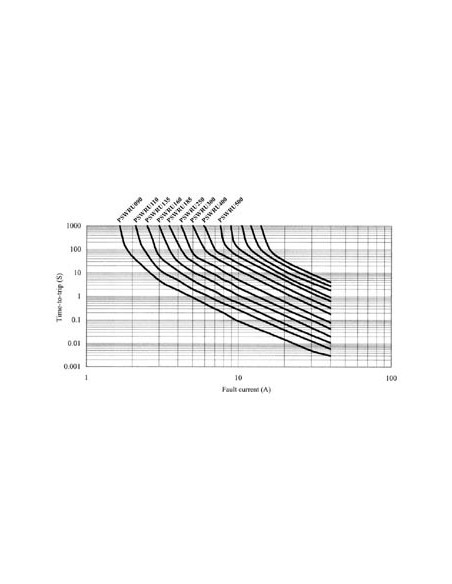

  • max. time to trip (at 5 x Ih): 5.9
  • max. current Imax (A): 40
  • rated voltage Vmax (Vdc): 30
  • typ. power Pd (W): 0.6
  • resistance tolerance:
  • Rmin (ohm): 0.070
  • Rmax. (1 hour after tripping) (ohm): 0.22

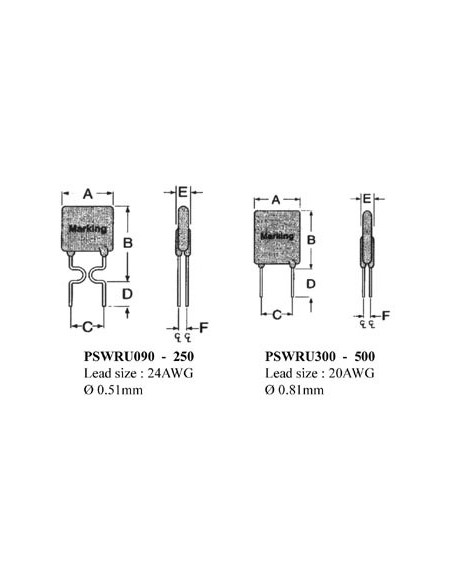

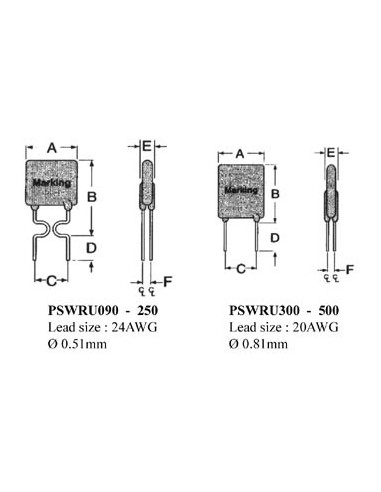

  • dimensions:
  • A (max): 7.4
  • B (max): 12.2
  • C (typ): 5.1
  • D (min): 7.6
  • E (max): 3.0
  • F (typ): 0.9
  • operating current: 900mA ~ 9.0A
  • maximum current: 40A
  • maximum voltage: 30V
  • temperature range: -40°C to +85°C
  • materials:
  • leads: tin-plated copper
  • insulating: flame-retardant epoxy, meets requirement UL-94V-O


  • EAN: 5410329214692
