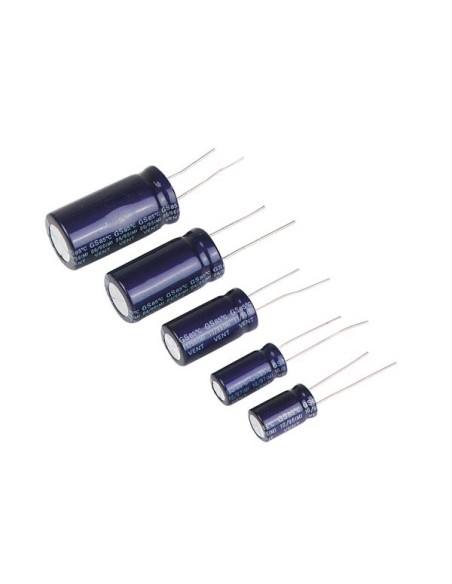

ELCO RADIAL 1000µF / 63V
ELCO RADIAL 1000µF / 63V
ELCO RADIAL 1000µF / 63V
ELCO RADIAL 1000µF / 63V
ELCO RADIAL 1000µF / 63V
ELCO RADIAL 1000µF / 63V

ELCO RADIAL 1000µF / 63V

1000J0K
Available
€2.20
Tax included
ELCO RADIAL 1000µF / 63V

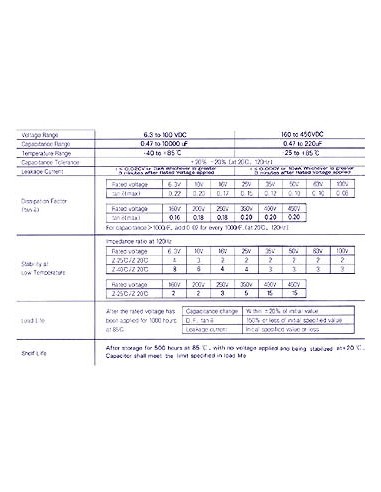

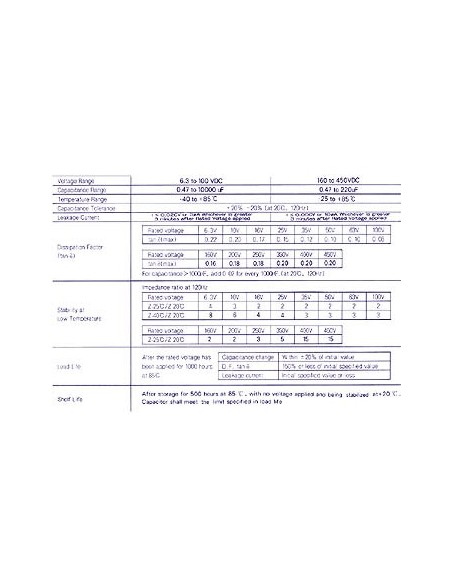

Specification(s):
  • high reliability
  • guaranteed long life: 1000/2000hrs at 85°C
  • capacitance tolerance: ±20% (120Hz / 20°)
Feature(s):

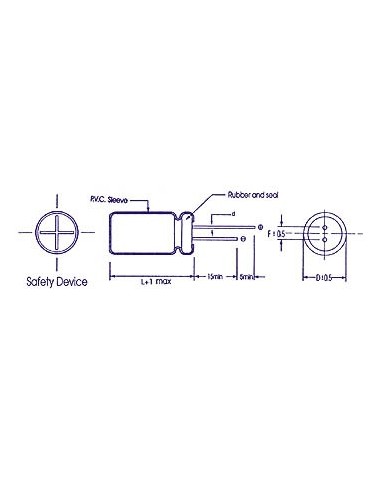

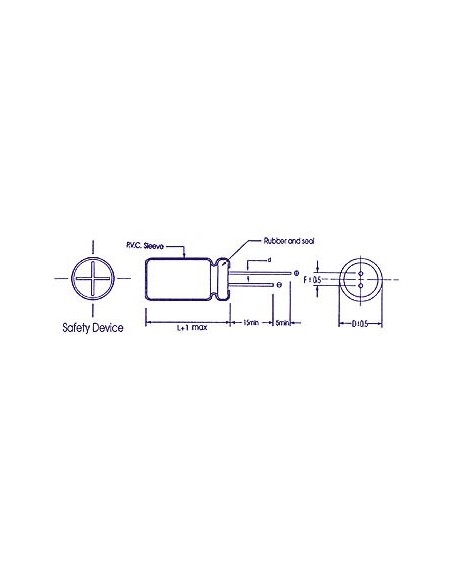

  • Physical properties
  • Diameter lead: 0.8 mm
  • Low profile: No
  • Technical data
  • Pitch: 7.5 mm
  • Tolerance: ± 20 %
  • Capacitance: 1000 µF
  • Capacitor type: Electrolytic capacitors
  • Lifetime at 85 °C: 1000-2000 h
  • Environmental data
  • Operating temperature: -40-85 °C
  • Operational properties
  • PCB mounting type: Radial
  • Power supply
  • Voltage rating: 63 V
  • Product basic info
  • Colour: Black
  • Height: 32 mm
  • Diameter: 16 mm
  • Material: PET (polyethylene terephthalate)


  • EAN: 5410329292201
