ELCO RADIAL 22µF / 25V
ELCO RADIAL 22µF / 25V
ELCO RADIAL 22µF / 25V
ELCO RADIAL 22µF / 25V
ELCO RADIAL 22µF / 25V
ELCO RADIAL 22µF / 25V

ELCO RADIAL 22µF / 25V

22J0D
Out-of-Stock
€0.24
Tax included
ELCO RADIAL 22µF / 25V

The minimum purchase order quantity for the product is 10.

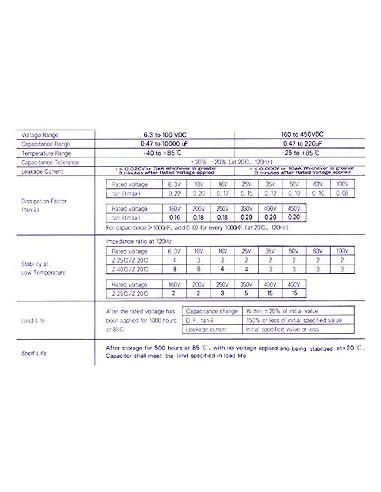

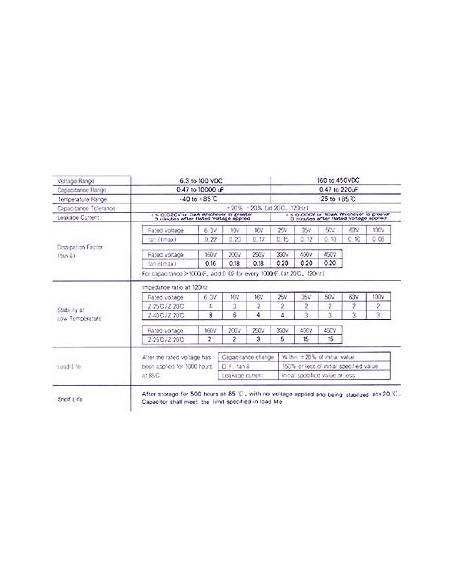

Specification(s):
  • high reliability
  • guaranteed long life: 1000/2000hrs at 85°C
  • capacitance tolerance: ±20% (120Hz / 20°)
Feature(s):
  • Physical properties
  • Diameter lead: 0.5 mm
  • Low profile: No
  • Technical data
  • Pitch: 2 mm
  • Tolerance: ± 20 %
  • Capacitance: 22 µF
  • Capacitor type: Electrolytic capacitors
  • Lifetime at 85 °C: 1000-2000 h
  • Environmental data
  • Operating temperature: -40-85 °C
  • Operational properties
  • PCB mounting type: Radial
  • Power supply
  • Voltage rating: 25 V
  • Product basic info
  • Colour: Black
  • Height: 11 mm
  • Diameter: 5 mm
  • Material: PET (polyethylene terephthalate)


  • EAN: 5410329368227
