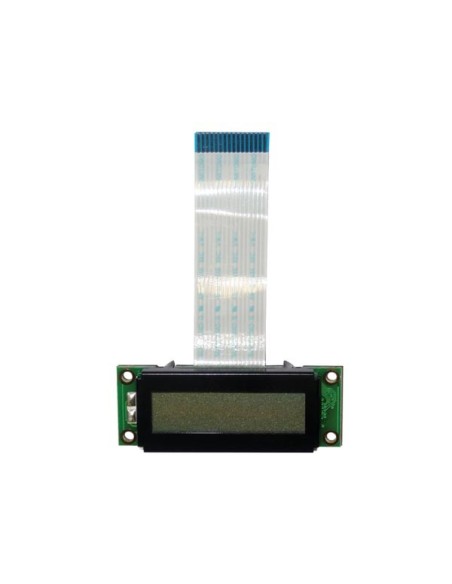

LCD 16x2 STN Grey Positive Transflective WHITE Backlight
LCD 16x2 STN Grey Positive Transflective WHITE Backlight
LCD 16x2 STN Grey Positive Transflective WHITE...
LCD 16x2 STN Grey Positive Transflective WHITE...

LCD 16x2 STN Grey Positive Transflective WHITE Backlight

PC1602WRS-KWA-E
Available
€27.95
Tax included
LCD 16x2 STN Grey Positive Transflective WHITE Backlight


Specification(s):
  • display type: 16 x 2 characters
  • LCD type: STN, Gray, Positive, Transflective, Normal Temp
  • duty-bias: 1/16 - 1/5
  • character font: 5 x 7 dots
  • viewing direction: 12 o'clock
Feature(s):
  • ratings:
  • ?supply for LCD driver (Vdd-Vo):
  • at 0°C: 4.8V typ.
  • at 25°C: 4.6V typ.
  • at 50°C: 4.4V typ.
  • ?supply for logic (Vdd-Vss): :
  • at 25°C: 5.0V typ.
  • operating temperature: 0°C to +50°C / 32°F to + 122°F
  • storage temperature: -20°C to +70°C / -4°F to 158°F
  • mechanical:
  • viewing area: 36 x 10mm / 1.42 x 0.394"
  • dot size: 0.33 x 0.35mm / 0.013 x 0.0138"
  • character size: 3.15 x 1.85mm / 0.124 x 0.0394"
  • weight: 13g (0.0287lbs)


  • EAN: 5410329375638
