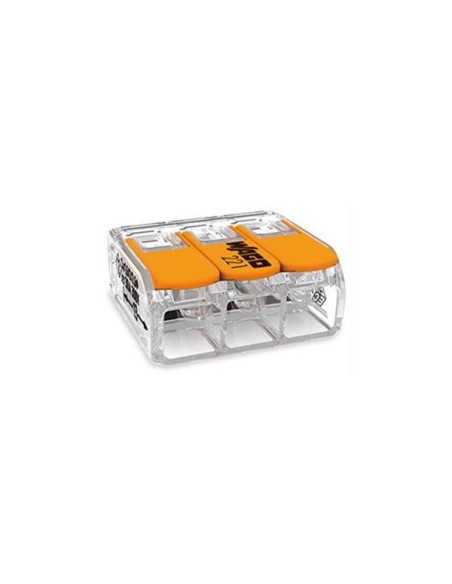

COMPACT SPLICING CONNECTOR - FOR ALL CONDUCTOR TYPES - max. 6 mm² - 3-CONDUCTOR - WITH LEVERS - TRANSPARENT HOUSING
WG221613
COMPACT SPLICING CONNECTOR - FOR ALL CONDUCTOR TYPES - max. 6 mm² - 3-CONDUCTOR - WITH LEVERS - TRANSPARENT HOUSING
Specification(s):
- for extended product info, please visit [link url=http://www.wago.com]WAGO[/link]
- Physical properties
- Cable diameter: 0.5 mm
- Electrical data
- Current rating: 41 A
- Actuation type: Lever
- Number of strands: 1
- Conductor type: For all conductor types
- Technical data
- Fire load: 0.073 MJ
- Connections
- Wire size AWG: 10-20 AWG
- Wire size mm²: 0.5-6 mm²
- Range wire size AWG flexible: 10-20 AWG
- Wire size flexible: 0.5-6 mm²
- Wire size AWG: 20 AWG
- Electrical connections
- Number of connections: 3
- Connection technology: Cage Clamp®
- Strip length: 12-14 mm
- Power supply
- Voltage rating: 450 V
- Impulse voltage rating: 4 kV
- Product basic info
- Colour: Transparent
- Additional colour: Orange

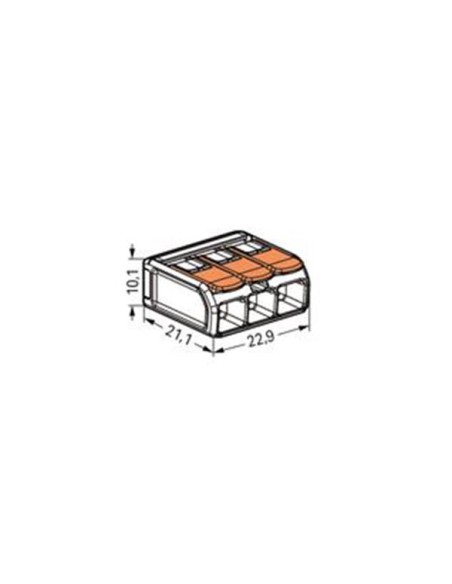

- Depth: 2.11 cm
- Height: 1.01 cm
- Weight: 4 g
- Width: 2.29 cm
- EAN: 5410329716134
