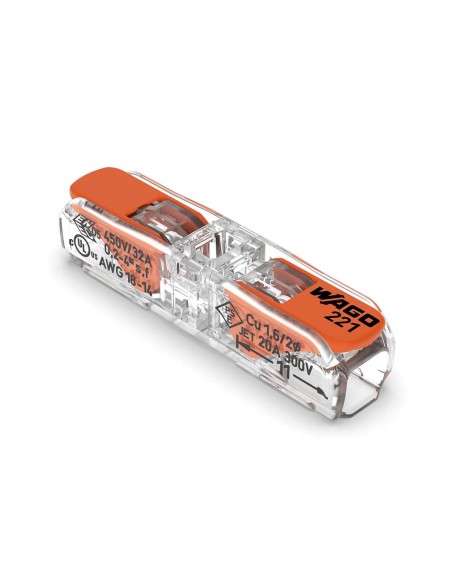

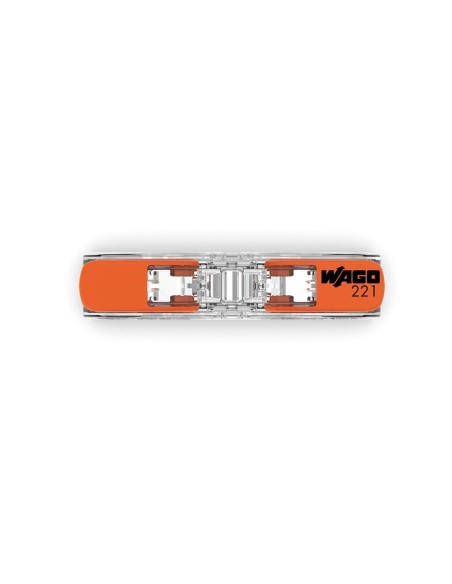

Inline splicing connector with levers 0.2 - 4 mm² - for all conductor type
Inline splicing connector with levers 0.2 - 4 mm² - for all conductor type
Inline splicing connector with levers 0.2 - 4...
Inline splicing connector with levers 0.2 - 4...

Inline splicing connector with levers 0.2 - 4 mm² - for all conductor type

WG2212411


Specification(s):
  • This connector is suitable for worldwide installations.
  • Inline connection of solid, stranded and fine-stranded conductors from 0.2 to 4 mm² (24-16 AWG)
  • Slim design saves space in tight areas
  • Tool-free connection and disconnection thanks to convenient lever technology
  • Use a mounting carrier for fixed and multi-pole wiring
Feature(s):
  • Physical properties
  • Number of connections: 2
  • Electrical data
  • Current rating: 32 A
  • Actuation type: Lever
  • Conductor type: For all conductor types
  • Strip length: 11 mm
  • Technical data
  • Fire load: 0.057 MJ
  • Safety standard: EN 60664
  • Safety class rn: II
  • Environmental data
  • Operating temperature °C: -60-105 °C
  • Connections
  • Wire size mm²: 0.2-4 mm²
  • Range wire size AWG rigid: 20-14 AWG
  • Range wire size AWG flexible: 1-14 AWG
  • Wire size flexible: 0.2-2.5 mm²
  • Wire size AWG range: 20-14 AWG
  • Electrical connections
  • Strip length range: 11 mm
  • Connection technology: Cage clamp®
  • Cable cross-section: 4 mm²
  • Power supply
  • Voltage rating: 450 V
  • Impulse voltage rating: 4 kV
  • Product basic info
  • Colour unit: Transparent
  • Width unit: 8.1 mm
  • Weight unit: 2.3 g
  • Height unit: 8.9 mm
  • Depth unit: 35.5 mm
  • Additional colour: Orange
  • Material: PC (polycarbonate)
  • Extra information
  • Supplier weblink:

    WAGO



  • EAN: 5410329759056
