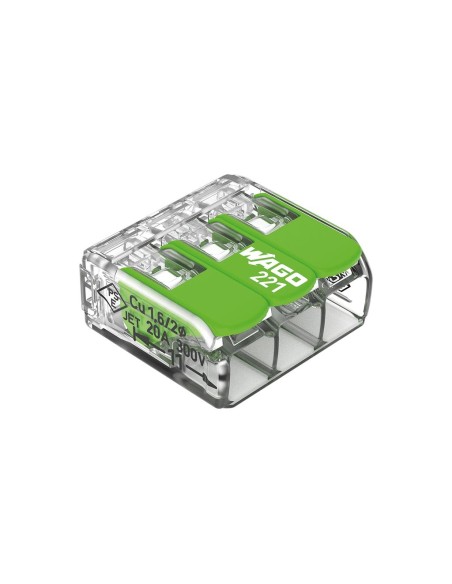

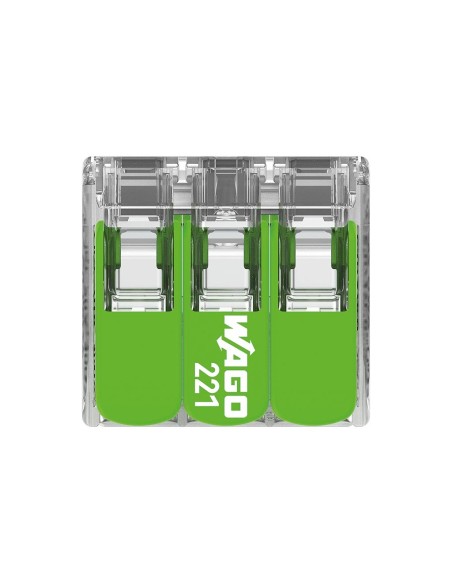

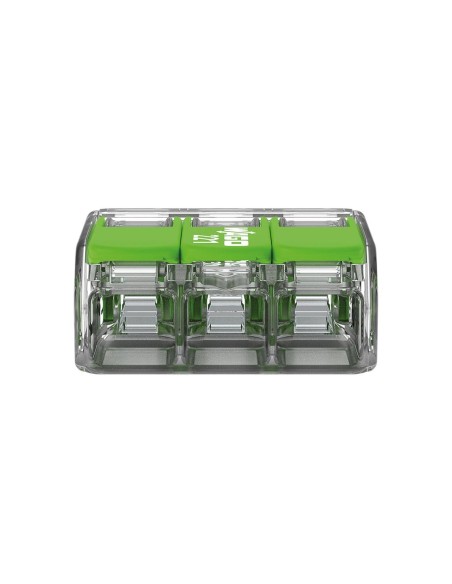

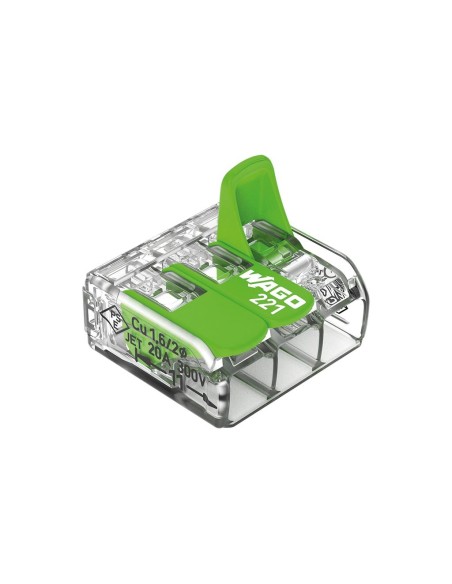

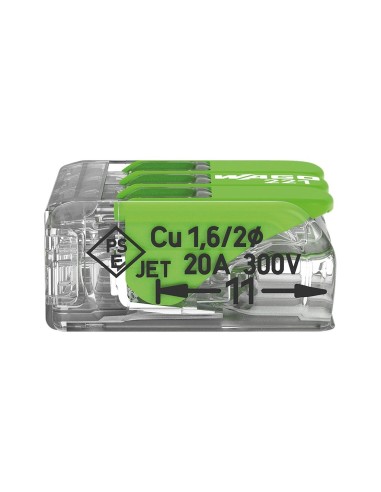

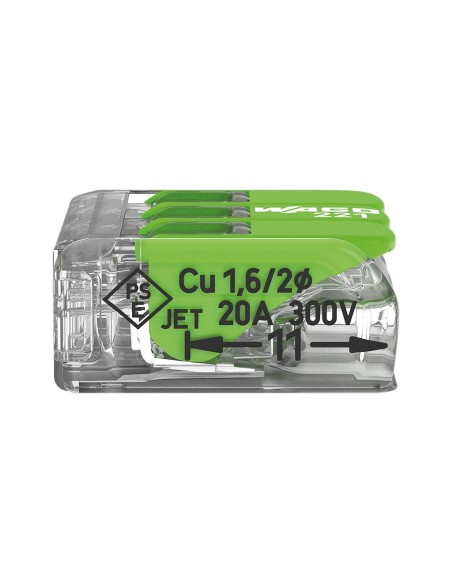

Splicing connector with levers Green Range; for all conductor types; max. 4 mm²; 3-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
Specification(s):
Specification(s):
- Plastics made partly from post-consumer recycled material (e.g., recycled PET bottles) and bio-based residues from industrial and household use (bio-circular)
- Reduced consumption of fossil resources, since existing resources remain in circulation
- Connect solid, stranded and fine-stranded conductors
- Same quality and certifications as the 221 Series Splicing Connector
- Packed in Grass Paper
- Physical properties
- Number of connections: 3
- Electrical data
- Current rating: 32 A
- Actuation type: Lever
- Conductor type: For all conductor types
- Strip length: 11 mm
- Technical data
- Fire load: 0.075 MJ
- Safety standard: EN 60664
- Safety class rn: II
- Environmental data
- Operating temperature °C: -60-105 °C
- Connections
- Wire size mm²: 0.14-4 mm²
- Range wire size AWG rigid: 24-12 AWG
- Range wire size AWG flexible: 24-12 AWG
- Wire size flexible: 0.14-4 mm²
- Wire size AWG range: 24-12 AWG
- Electrical connections
- Connection technology: Cage clamp®
- Cable cross-section: 4 mm²
- Power supply
- Voltage rating: 450 V
- Impulse voltage rating: 4 kV
- Product basic info
- Colour unit: Transparent
- Width unit: 18.8 mm
- Weight unit: 2.5 g
- Height unit: 8.6 mm
- Depth unit: 18.8 mm
- Additional colour: Green
- Material: PC (polycarbonate)
- Extra information
- Supplier weblink:
- EAN: 5410329759032
