HF-CHOKE 68µH
68H0
Out-of-Stock
€0.51
Tax included

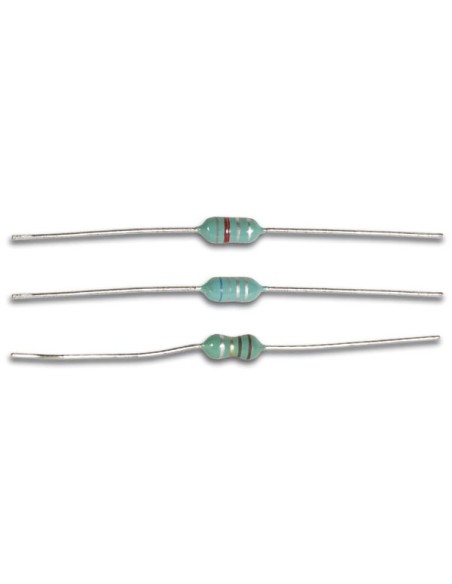

HF-CHOKE 68µH
BC (bobbin core) chokes are HF chokes with a copper-wire winding on a special ferrite drum core. The plastic sleeve is flame-retardant. Colour coding is achieved by using rings in accordance with IEC publication 62. The chokes are available on one-piece tapes (suitable for automatic assembly).
Specification(s):
Specification(s):
- conformal coated inductors
- special magnetic core structure contributes to high Q and Self-Resonant Frequencies (S.R.F.)
- epoxy coated for better reliability
- wide inductance range
- ideal for auto insertion
- inductance: 68µH
- tolerance: 10%
- rated current: 305mA
- DC resistance: 1.47 ohm
- S.R.F: 5.7MHz
- Q min: 40
- EAN: 5410329253059
