C5N6
Available
€0.35
Tax included
CERAMIC CAPACITOR 5.6nF

The minimum purchase order quantity for the product is 25.


Standard ceramic disc capacitors for coupling and decoupling applications.

Specification(s):
  • rated voltage: 50Vdc
  • lead spacing: 0.2" (5.08mm)
  • capacitance has a linear temperature coefficient
  • very stable capacitance
  • low loss at wide frequency range

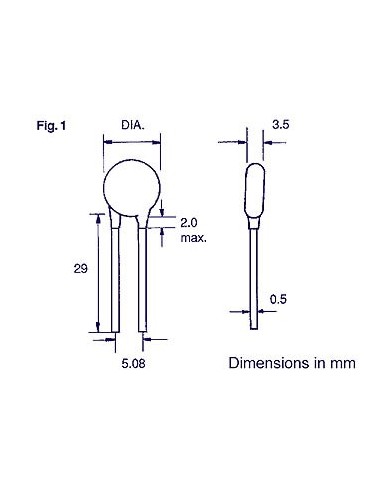

  • excellent CU-to-volume ratio (see fig. 1)

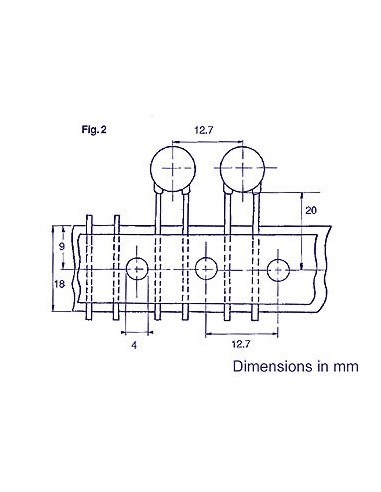

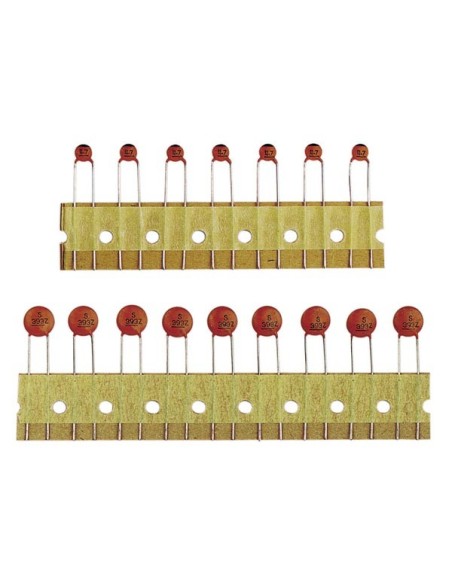

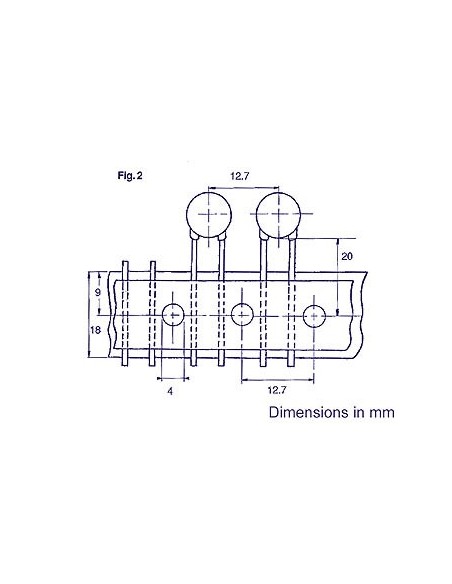

  • standard supply on tape (see fig. 2)
Feature(s):
  • Physical properties
  • Diameter lead: 0.5 mm
  • Technical data
  • Pitch: 5.08 mm
  • Capacitance: 5600 pF
  • Tolerance: -20-80 %
  • Environmental data
  • Operating temperature: -10-80 °C
  • Operational properties
  • PCB mounting type: Through-hole mounting
  • Power supply
  • Maximum voltage rating VDC: 50 V
  • Product basic info
  • Height: 30 mm
  • Diameter: 10 mm
  • Material: Ceramics


  • EAN: 5410329262860
