Standard ceramic disc capacitors for coupling and decoupling applications.
Specification(s):
Specification(s):
- rated voltage: 50Vdc
- lead spacing: 0.2" (5.08mm)
- capacitance has a linear temperature coefficient
- very stable capacitance
- low loss at wide frequency range

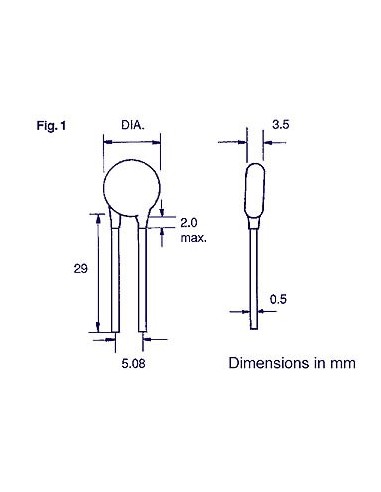

- excellent CU-to-volume ratio (see fig. 1)

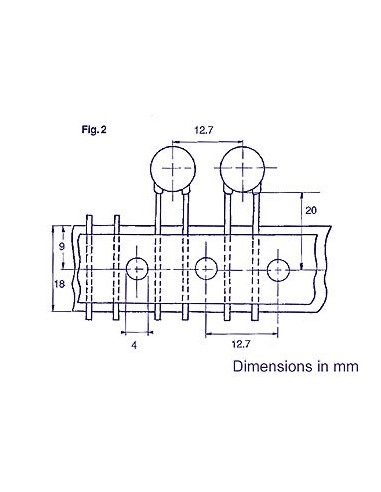

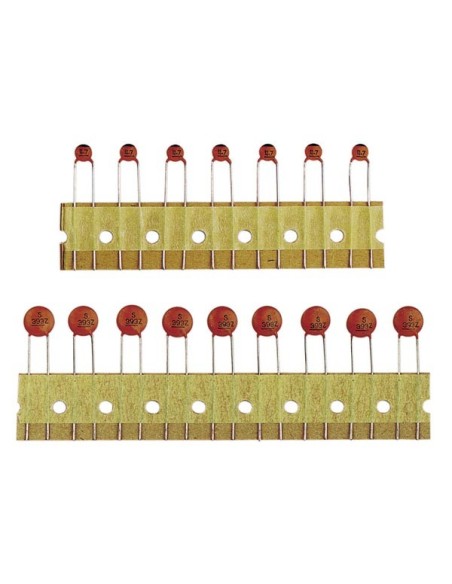

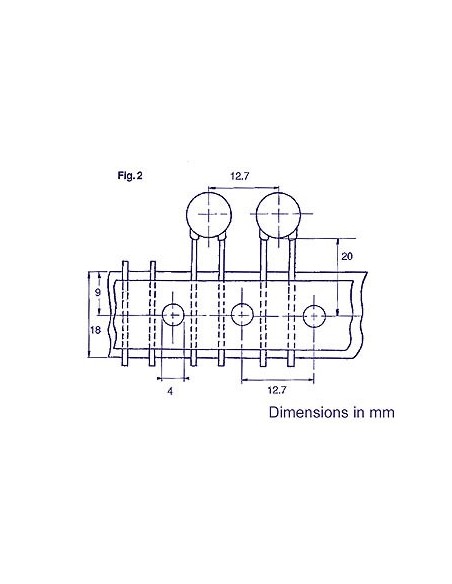

- standard supply on tape (see fig. 2)
- Physical properties
- Diameter lead: 0.5 mm
- Technical data
- Pitch: 5.08 mm
- Capacitance: 39000 pF
- Tolerance: -20-80 %
- Environmental data
- Operating temperature: -10-80 °C
- Operational properties
- PCB mounting type: Through-hole mounting
- Power supply
- Maximum voltage rating VDC: 50 V
- Product basic info
- Height: 30 mm
- Diameter: 10 mm
- Material: Ceramics
- EAN: 5410329262723
