Ceramic multilayer capacitors for bypass and filtering applications.
Specification(s):
Specification(s):
- low dissipation factor: 5% max. at 1kHz
- non-polar
- low loss at wide frequency range

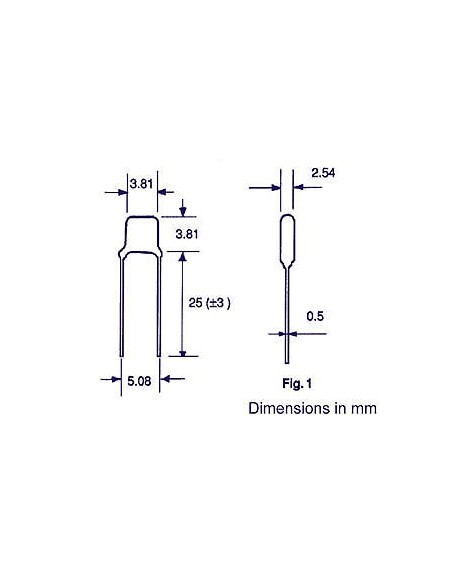

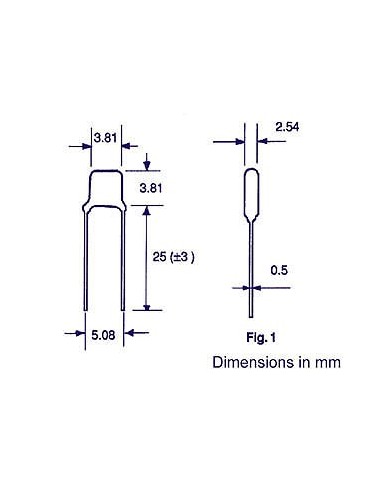

- excellent CU-to-volume ratio (max. capacitance 1µF) (see fig. 1)

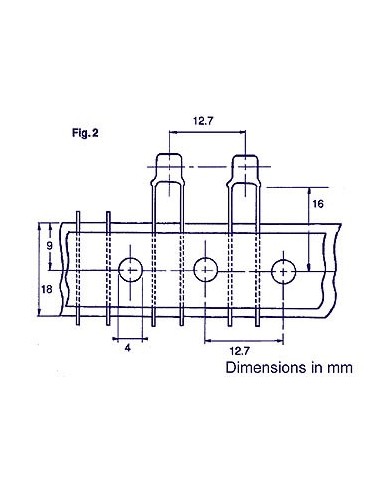

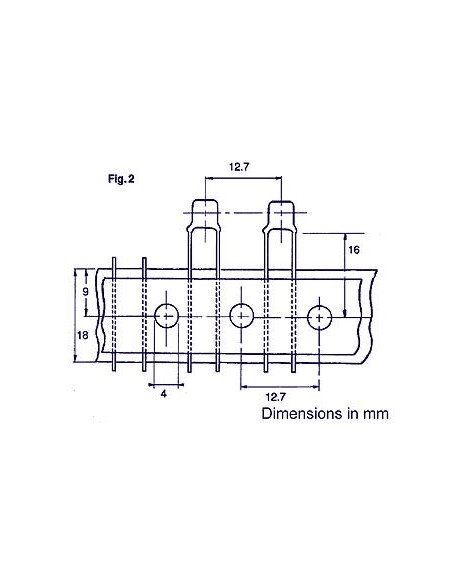

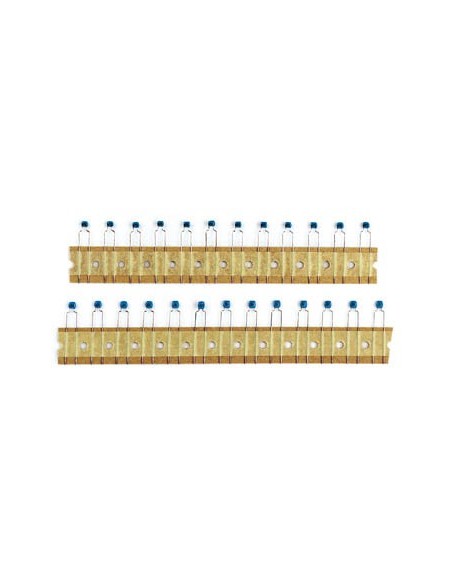

- standard supply on tape (see fig. 2)
- capacitance: 33nF
- voltage: 50Vdc
- temperature range: -10°C to +85°C
- tolerance: -22 to +56%
- EAN: 5410329262693
