CERAMIC MULTILAYER CAPACITOR 220nF

The minimum purchase order quantity for the product is 25.


Ceramic multilayer capacitors for bypass and filtering applications.

Specification(s):
  • low dissipation factor: 5% max. at 1kHz
  • non-polar
  • low loss at wide frequency range

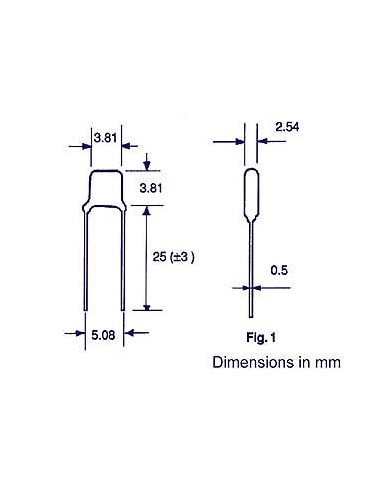

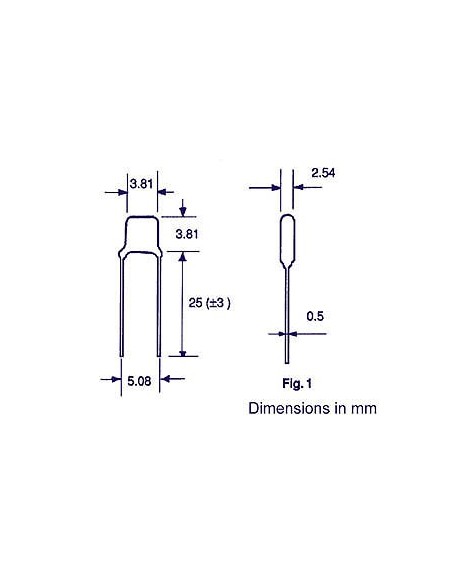

  • excellent CU-to-volume ratio (max. capacitance 1µF) (see fig. 1)

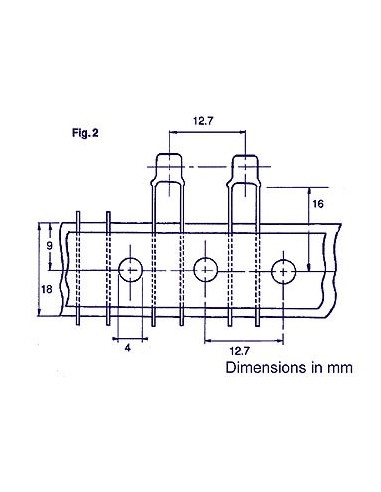

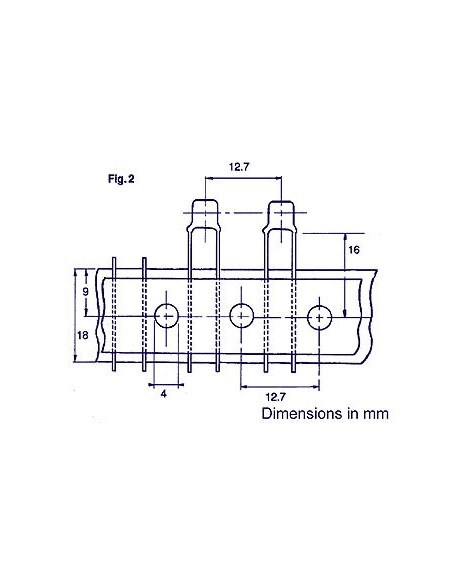

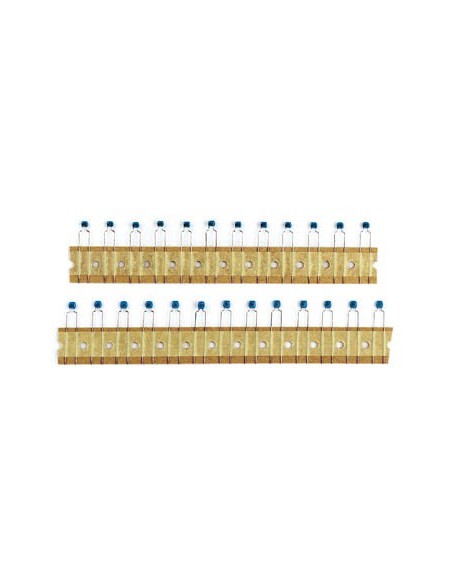

  • standard supply on tape (see fig. 2)
Feature(s):
  • Physical properties
  • Diameter lead: 0.5 mm
  • Polarized: No
  • Technical data
  • Pitch: 5.08 mm
  • Capacitance: 220 nF
  • Tolerance range: -22-56 %
  • Environmental data
  • Operating temperature: -10-85 °C
  • Power supply
  • Maximum voltage rating VDC: 50 V
  • Product basic info
  • Colour: Blue
  • Depth: 2.54 mm
  • Height: 28.81 mm
  • Weight: 0.25 g
  • Width: 3.81 mm
  • Material: Ceramics


  • EAN: 5410329262570
