CERAMIC MULTILAYER CAPACITOR 100nF
C100N0M
Out-of-Stock
€0.30
Tax included
CERAMIC MULTILAYER CAPACITOR 100nF
Ceramic multilayer capacitors for bypass and filtering applications.
Specification(s):
Specification(s):
- low dissipation factor: 5% max. at 1kHz
- non-polar
- low loss at wide frequency range

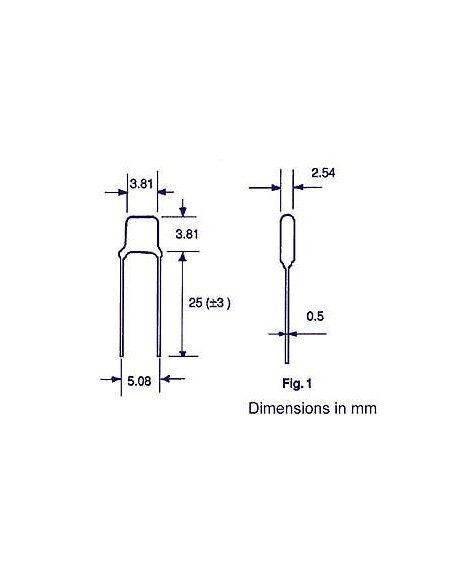

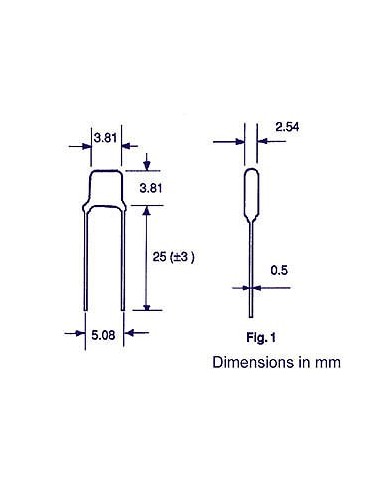

- excellent CU-to-volume ratio (max. capacitance 1µF) (see fig. 1)

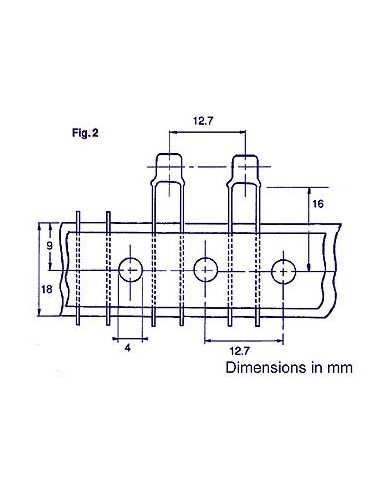

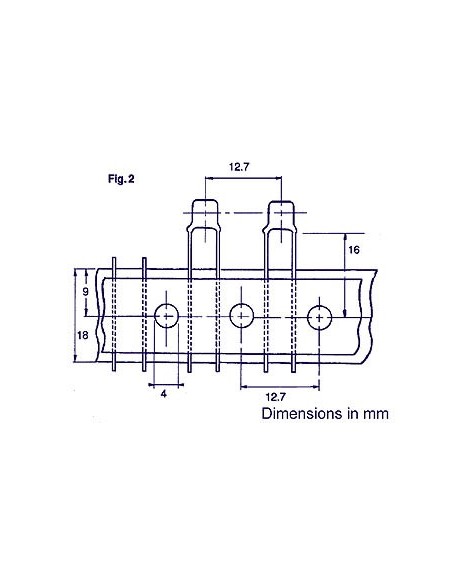

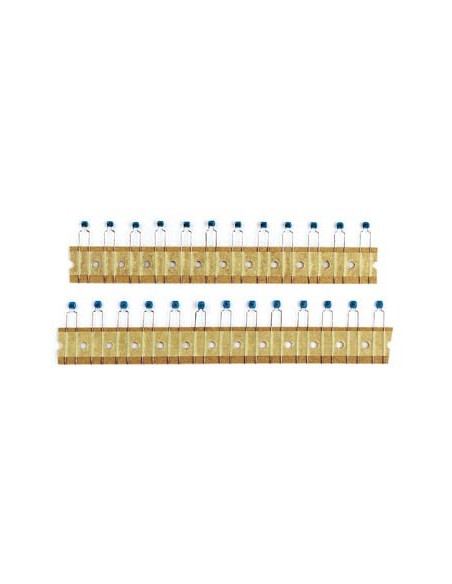

- standard supply on tape (see fig. 2)
- Physical properties
- Diameter lead: 0.5 mm
- Polarized: No
- Technical data
- Pitch: 5.08 mm
- Capacitance: 100 nF
- Tolerance range: -22-56 %
- Environmental data
- Operating temperature: -10-85 °C
- Power supply
- Maximum voltage rating VDC: 50 V
- Product basic info
- Colour: Blue
- Depth: 2.54 mm
- Height: 28.81 mm
- Weight: 0.25 g
- Width: 3.81 mm
- Material: Ceramics
- EAN: 5410329262372
