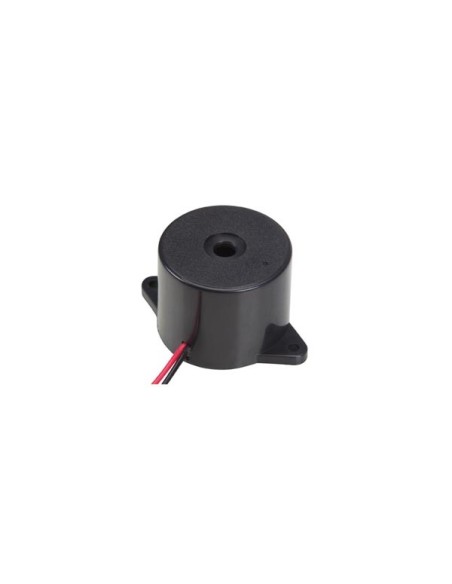

PIEZO ELECTRIC BUZZER 12 VDC - LEAD WIRE TYPE
PIEZO ELECTRIC BUZZER 12 VDC - LEAD WIRE TYPE

PIEZO ELECTRIC BUZZER 12 VDC - LEAD WIRE TYPE

SV4N
Out-of-Stock
€4.10
Tax included
PIEZO ELECTRIC BUZZER 12 VDC - LEAD WIRE TYPE


Specification(s):
  • flange-mounted
  • constant pulse
  • high sound pressure level: 95 dB at 30 cm
  • wide operating voltage range: 3 - 24 VDC
Feature(s):
  • tone type: constant
  • operating voltage: 3-24 VDC
  • rated voltage: 12 VDC
  • current consumption: 25 mA
  • oscillation frequency: 2.5 kHz
  • sound level:
  • at 12 VDC: 95 dB at 30 cm
  • at 3.3 VDC: 85 dB at 10 cm
  • connector type: leads
  • body colour: black
  • weight: 6 g
  • buzzer with built-in oscillator
  • flange mounting
  • ABS case


  • EAN: 5410329612689
