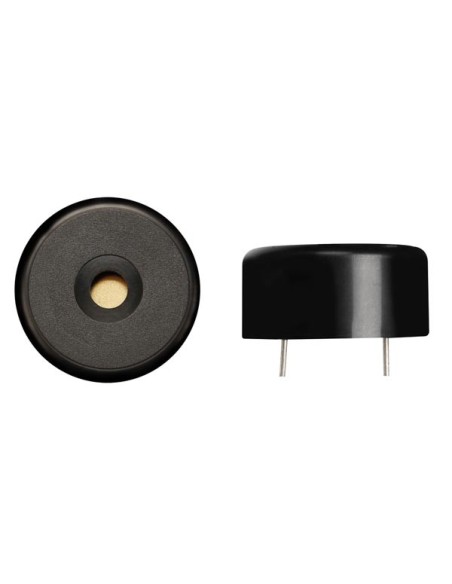

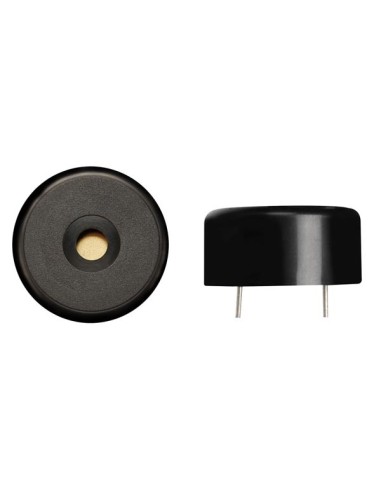

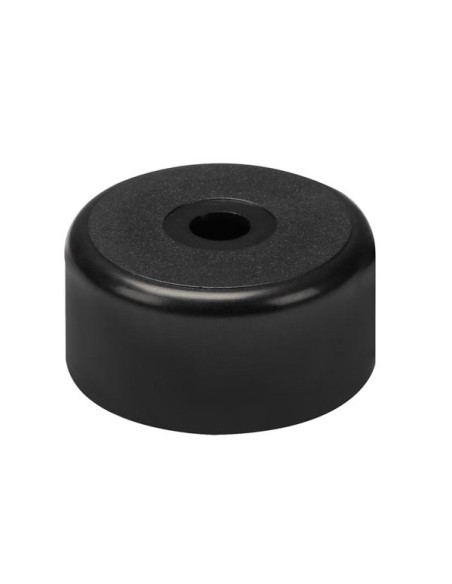

PIEZO BUZZER 3 - 20 VDC - ø 30 mm - HEIGHT 14.7 mm - PIN PITCH 17.5 mm
PIEZO BUZZER 3 - 20 VDC - ø 30 mm - HEIGHT 14.7 mm - PIN PITCH 17.5 mm
PIEZO BUZZER 3 - 20 VDC - ø 30 mm - HEIGHT 14.7 mm - PIN PITCH 17.5 mm
PIEZO BUZZER 3 - 20 VDC - ø 30 mm - HEIGHT 14.7...
PIEZO BUZZER 3 - 20 VDC - ø 30 mm - HEIGHT 14.7...
PIEZO BUZZER 3 - 20 VDC - ø 30 mm - HEIGHT 14.7...

PIEZO BUZZER 3 - 20 VDC - ø 30 mm - HEIGHT 14.7 mm - PIN PITCH 17.5 mm

SV2N
Available
€3.96
Tax included
PIEZO BUZZER 3 - 20 VDC - ø 30 mm - HEIGHT 14.7 mm - PIN PITCH 17.5 mm


Specification(s):
  • PCB mounting type
  • for portable equipment
Feature(s):
  • operating voltage: 3-20 VDC
  • rated voltage: 12 VDC
  • max. rated current: 10 mA
  • sound output: 100 dBa @ 10 cm / 12 V
  • frequency: 3200 ± 500 Hz
  • signal: continuous
  • operating temperature: -20 to +60 °C
  • terminal: pin
  • housing material: ABS (pb free version)
  • colour: black

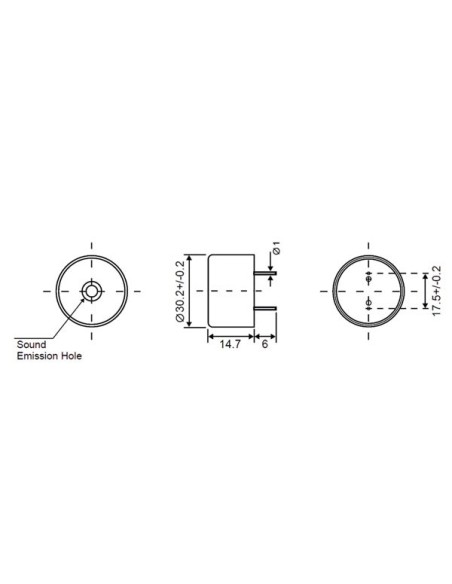

  • dimensions:
  • diameter: 30.2 mm
  • height: 14.7 mm
  • pin pitch: 17.5 mm


  • EAN: 5410329637064
