CERMET TRIMMER MULTI-TURN 200K
K200TW
Niet op voorraad
€ 2,81
Inclusief belasting
CERMET TRIMMER MULTI-TURN 200K

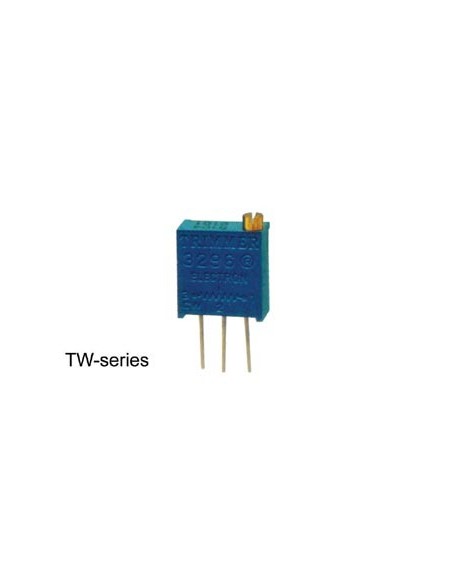

Professional multiturn trimming potentiometers.
The cermet resistance element offers stability and high resolution. The trimmer is actuated by a screw with a slipping clutch at each end of travel. End stops are marked by an audible click. All units have a blue plastic case which withstands all recognised board washing solvents.
Specificatie(s):
Specificatie(s):
- MEC CITEC 4290W
- vertical mounting
- vertical adjustment
- pin layout: line
- bereik: 10E to 5M (E3 series)
- vermogen: 0.5W at 70°C
- tolerantie: ±10%
- working voltage: 300Vdc max.
- rotatie:
- elektrisch circuit: 22 turns nom.
- mechanisch: 25 turns nom.
- EAN: 5410329284688
