K010TW
Niet op voorraad
€ 2,48
Inclusief belasting

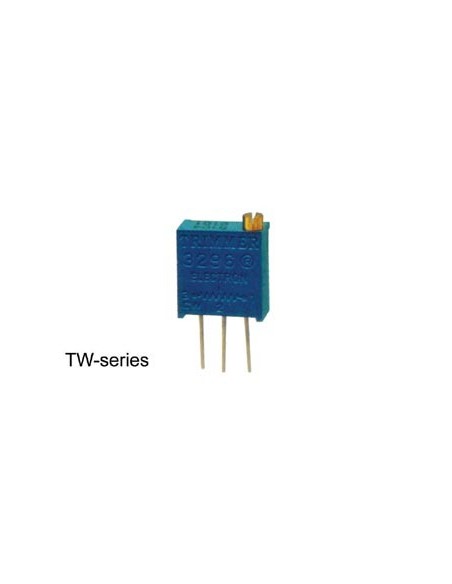

CERMET TRIMMER MULTI-TURN 10K


Professional multiturn trimming potentiometers. The cermet resistance element offers stability and high resolution. The trimmer is actuated by a screw with a slipping clutch at each end of travel. End stops are marked by an audible click. All units have a blue plastic case which withstands all recognised board washing solvents.

Specificatie(s):
  • MEC CITEC 4290W
  • vertical mounting
  • vertical adjustment
  • pin layout: line
  • bereik: 10E to 5M (E3 series)
Functie(s):
  • vermogen: 0.5W at 70°C
  • tolerantie: ±10%
  • working voltage: 300Vdc max.
  • rotatie:
  • elektrisch circuit: 22 turns nom.
  • mechanisch: 25 turns nom.


  • EAN:
