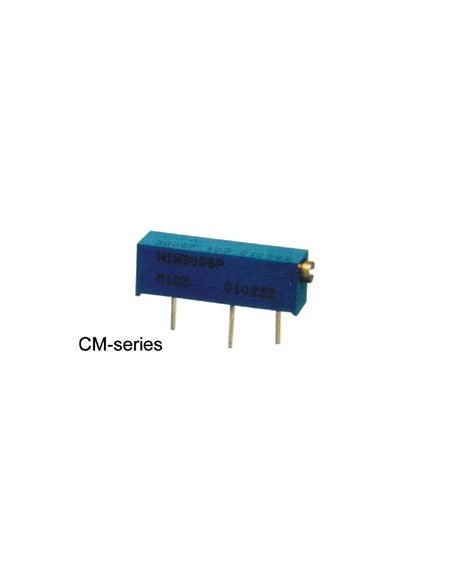

CERMET TRIMMER MULTI-TURN 1K

Professional multiturn trimming potentiometers. The cermet resistance element offers stability and high resolution. The trimmer is actuated by a screw with a slipping clutch at each end of travel. End stops are marked by an audible click. All units have a blue plastic case which withstands all recognised board washing solvents.

Specificatie(s):

• MEC CITEC 443PW
• horizontal mounting
• horizontal adjustment
• pin layout: triangle
• bereik: 10E to 2M (E3 series)

Functie(s):

• vermogen: 0.75W at 70°C
• tolerantie: ±10%
• working voltage: 400Vdc
• rotatie:
• elektrisch circuit: 15 turns nom.
• mechanisch: 18 turns nom.
