CERMET TRIMMER MULTI-TURN 50E
E050CM
Beschikbaar op
€ 2,20
Inclusief belasting

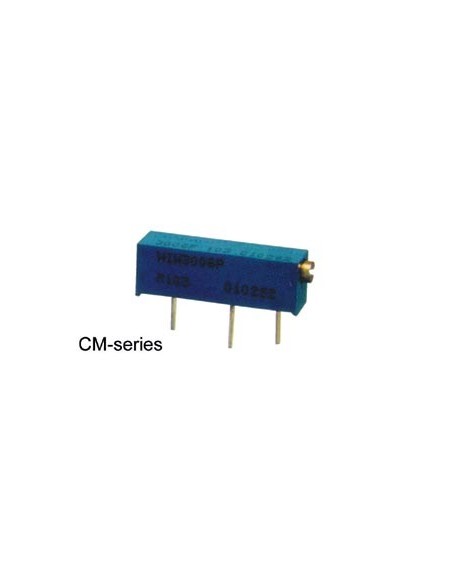

CERMET TRIMMER MULTI-TURN 50E
Professional multiturn trimming potentiometers.
The cermet resistance element offers stability and high resolution. The trimmer is actuated by a screw with a slipping clutch at each end of travel. End stops are marked by an audible click. All units have a blue plastic case which withstands all recognised board washing solvents.
Specificatie(s):
Specificatie(s):
- MEC CITEC 443PW
- horizontal mounting
- horizontal adjustment
- pin layout: triangle
- bereik: 10E to 2M (E3 series)
- vermogen: 0.75W at 70°C
- tolerantie: ±10%
- working voltage: 400Vdc
- rotatie:
- elektrisch circuit: 15 turns nom.
- mechanisch: 18 turns nom.
- EAN: 5410329305741
