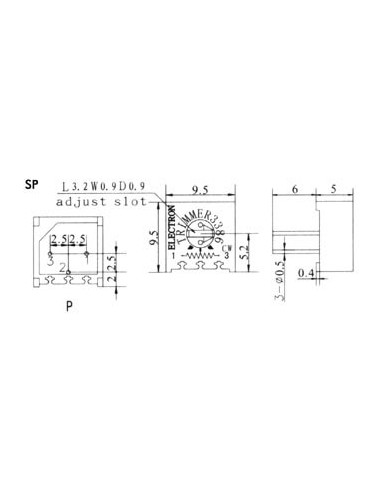

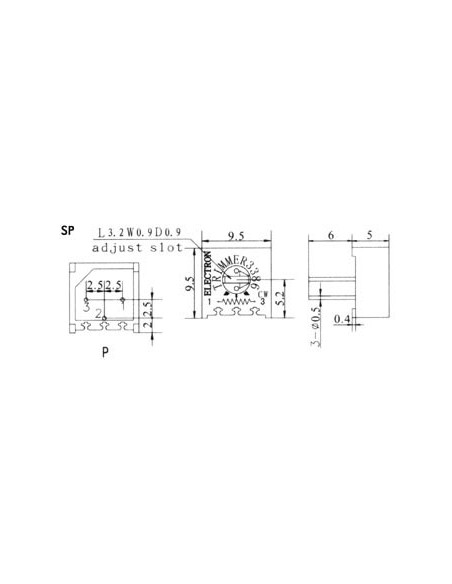

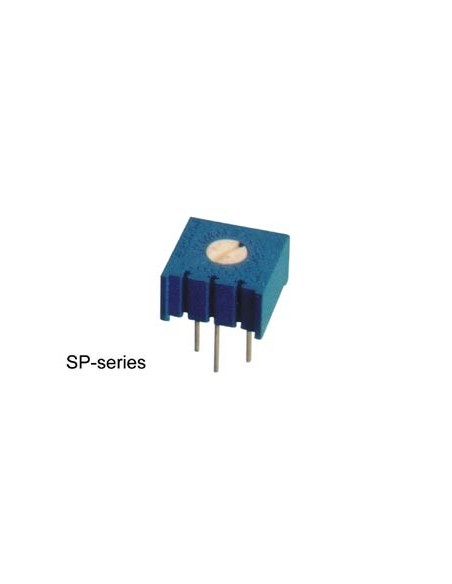

10mm square single-turn trim potentiometers. The cermet technology ensures stability and reliability. These PCB-mounted trimmers are available in different versions, requiring the user to adjust the trimmer either from the top or from the side. All components are sealed to withstand PCB washing solvents.
Spécification(s):
Spécification(s):
- CITEC 4295P
- horizontal mounting
- vertical adjustment
- pin layout: triangle
- range: 10E to 2M (E3 series)
- puissance: 0.5W at 85°C
- temperature range: -55°C to +125°C
- tolérance: ±10%
- tension de sortie: 300Vdc
- rotation:
- circuit électrique: 270°
- mechanical: 300°
- EAN: 5410329284671
