MOTOR SHIELD POUR MICROBIT®
WPSH006
Disponible
16,90 €
TTC

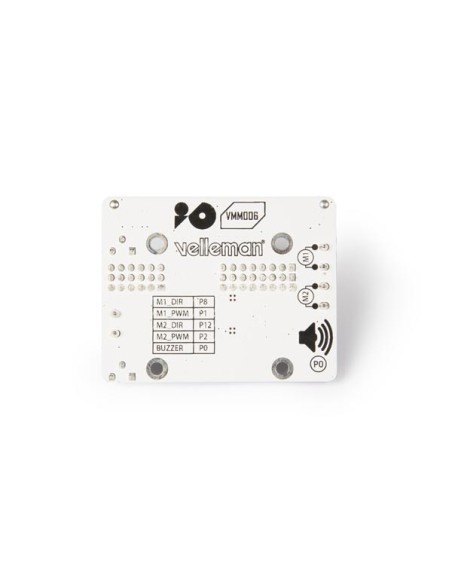

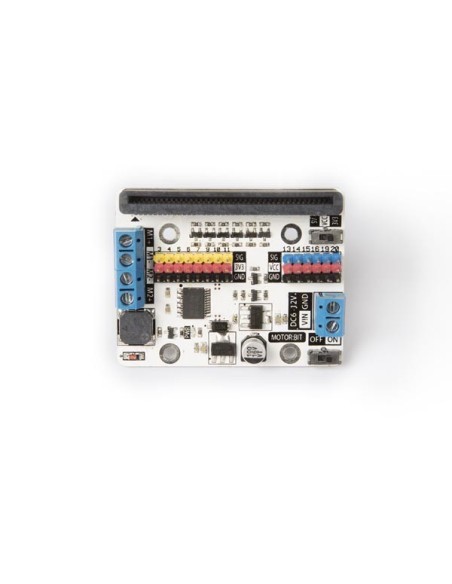

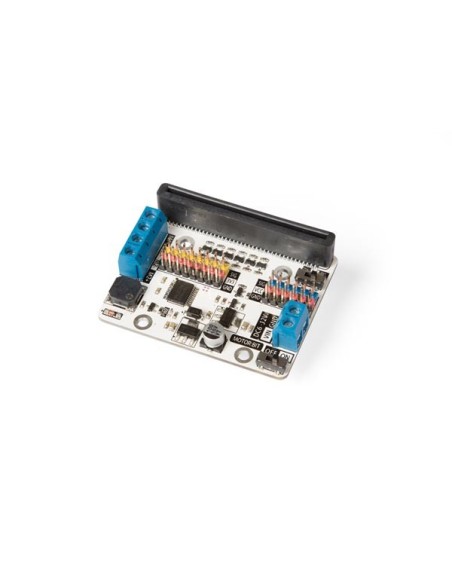

MOTOR SHIELD POUR MICROBIT®
This motor shield is compatible with micro:bit® and can be used to drive 2 DC motors at the same time. On top of that, you don't lose your micro:bit®'s 14 channel I/O ports because this little motor shield extends them. The motor driving chip is a TB6612 and drives a maximum of 1.2 A current.
Spécification(s):
Spécification(s):
- supporte 2 moteurs CC
- puce: TB6612
- 14 ports E/S addittionnels
- ronfleur contrôlé via micro:bit® port P0
- plage de tension: 6-12 VCC
- courant de sortie max.: 2 x 1.2 A
- ports E/S numériques extensibles: 12
- ports E/S analogiques extensibles: 3
- dimensions: 60 x 47.5 x 13 mm
- EAN: 5410329730192
