NEUTRIK - BNC - FOR VIDEO - 75 OHM - PUSH-PULL

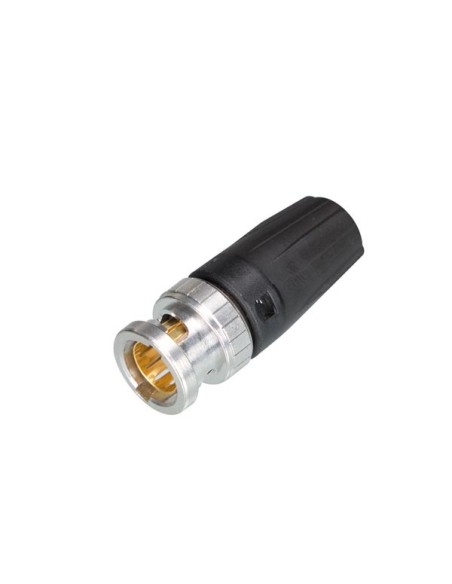

The rearTWIST BNC cable connector offers a true 75 ohm design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers colour coding.

Spezifikation(en):
  • "rearTWIST Principle" locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • ideal for recessed bulkheads where access to the "head" of the connector might be an issue. These connectors turn from the back and not the front.
  • true 75 ohm design meets the stringent HDTV / DVD requirements
  • leading area: avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
  • snug-fit centre pin insert provides tactile feedback
  • shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • excellent cable protection and retention
  • precise Swiss machined brass parts for outstanding durability
  • accessories include colour-coded boots in 10 standard colours, crimp tool and dies
Charakteristisch:
  • crimp size:
  • pin: 1.6 mm (square)
  • shield: 6.47 mm (hex)


  • EAN: 5410329568139
