PSWRX135
Abrufbar
1,10 €
Bruttopreis

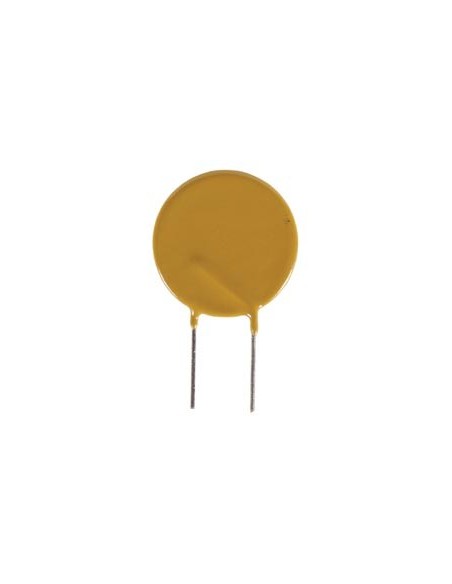

SELBSTRÜCKSTELLENDE SICHERUNG 1.35-2.7A / 60Vdc

Die Mindestbestellmenge für diesen Artikel ist 5.


Der PTC-Widerstand mit automatischer Rückstellung schützt die Schaltung ständig.

Spezifikation(en):
  • niedriger Haltestrom
  • Solid State
  • radiale Anschlüsse
Charakteristisch:
  • Haltestrom Ih (A): 1.35
  • Auslösestrom It (A): 2.70
  • max. Ansprechzeit (bei 5 x Ih): 9.6
  • max. Strom Imax (A): 40
  • nom. Spannung Vmax (Vdc): 60
  • typ. Leistung Pd (W): 1.70
  • Kaltwiderstand:
  • Rmin (Ohm): 0.12
  • Rmax. (1 Stunde nach Schaltung) (Ohm): 0.30

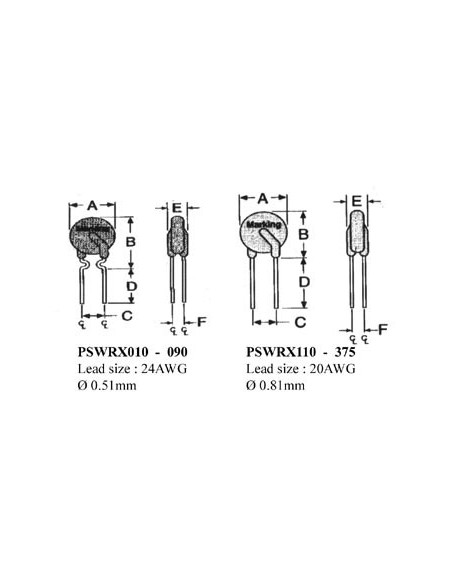

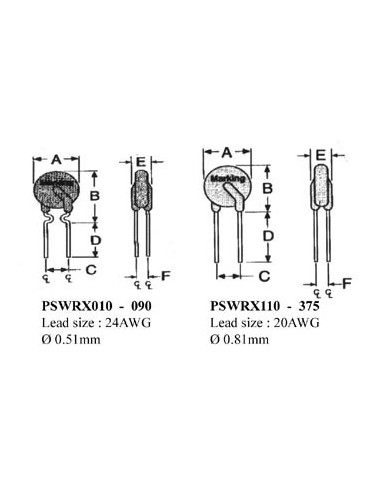

  • Abmessungen:
  • A (max): 14.5
  • B (max): 19.6
  • C (typ): 5.1
  • D (min): 7.6
  • E (max): 3.1
  • F (typ): 1.4
  • Ansprechstrom: 100mA ~ 3.75mA
  • max. Strom: 40A
  • max. Spannung: 60V
  • Temperaturbereich: -40°C bis +85°C
  • Materiale:
  • Anschlüsse: verzinntes Kupfer
  • Isolation: flammhemmendes Epoxy gemäß UL-94V-O


  • EAN: 5410329214272
