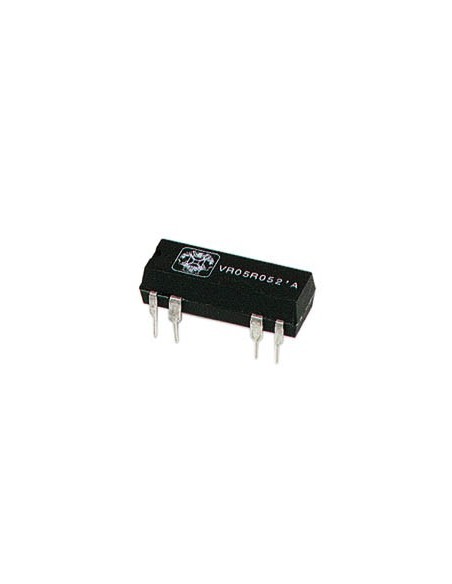

VR05R242A
DIL-RELAIS 0.5A/10W max. 2 x Ein 24Vdc

Spezifikation(en):
  • rentable Mini-Schaltlösung
  • die Kapseln haben ein ultramodernes Design
  • gespritzte Konstruktion, eignet sich für automatische Montage
  • DIL-Gehäuse, gespritzt in Epoxyd
  • völlig waschbar
Charakteristisch:
  • Spulenspannung: 24Vdc
  • Spulenwiderstand: 2150 ohm
  • Eingangsleistung: 268mW
  • Kontakt: 2 x Ein
  • Durchschlagsfestigkeit: 250Vdc
  • Temperaturbereich: -40°C bis +80°C


  • EAN:
