POTMETER MONO LIN 1M WITH SWITCH
POTMETER MONO LIN 1M WITH SWITCH
POTMETER MONO LIN 1M WITH SWITCH
POTMETER MONO LIN 1M WITH SWITCH

POTMETER MONO LIN 1M WITH SWITCH

M001AMS
Nur noch wenige Teile verfügbar
6,96 €
Bruttopreis

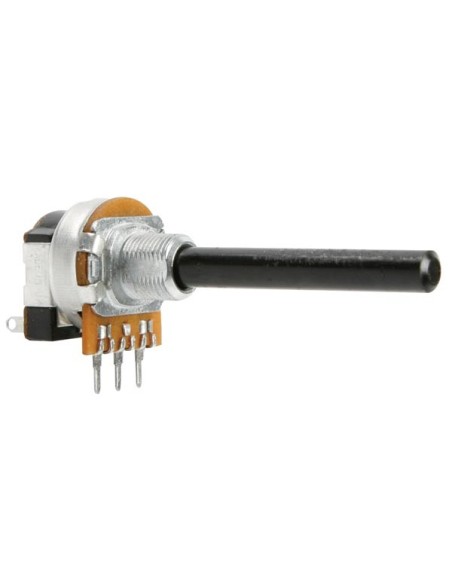

POTMETER MONO LIN 1M WITH SWITCH

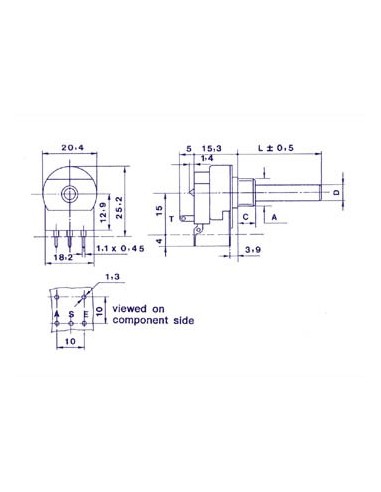

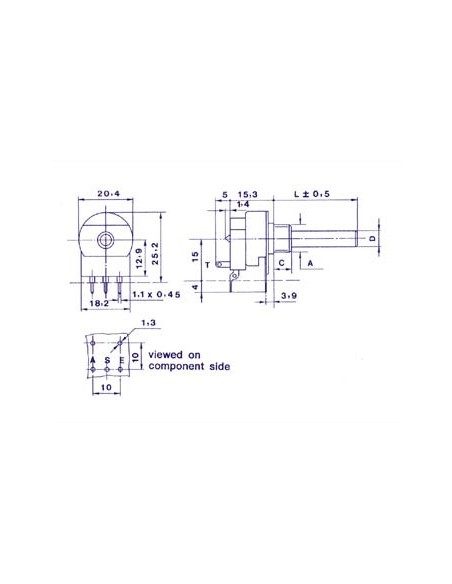

20mm rotary carbon track potentiometers for PCB mounting. Metal/plastic housing and plastic axe (Ø 6mm). Optional single-pole switch (1A-24Vdc / 0.3A-250Vac).

Spezifikation(en):
  • linear (A-Serie)
  • Mono
  • Schalter
  • OMEG
Charakteristisch:
  • Widerstandsbereich: 100E bis 4M7 (E3-Serie)
  • max. Verlustleistung: 0.4 W
  • Toleranz: ±20%
  • max. Betriebsspannung: 500 VDC
  • Temperaturbereich: -10°C bis +70°C
  • Drehwinkel: 300° ± 5°


  • EAN: 5410329287481
